A-551G-EP-AB-GN Datasheet | Para Light Electronics

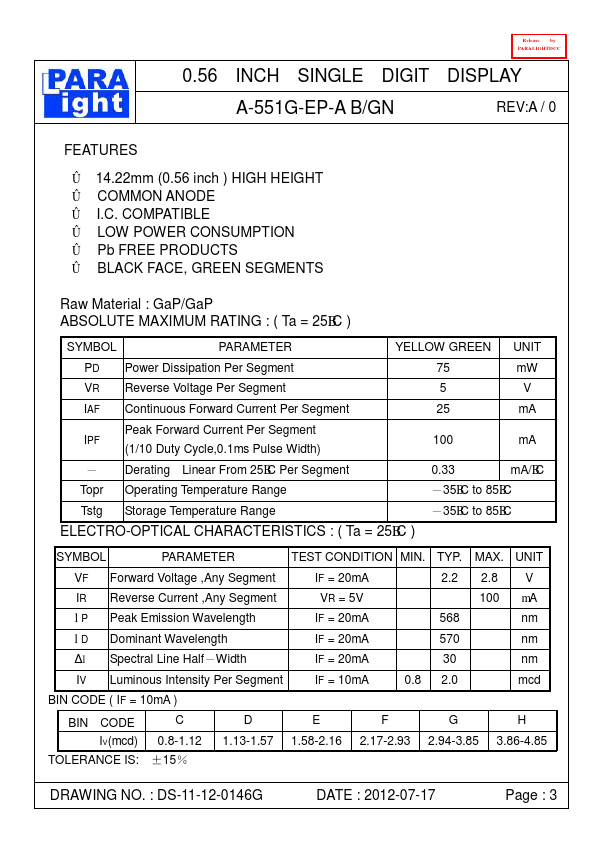

FEATURES Û 14.22mm (0.56 inch ) HIGH HEIGHT Û MON ANODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û Pb FREE PRODUCTS Û BLACK FACE, GREEN SEGMENTS Raw Material : Ga P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC ) SYMBOL PARAMETER YELLOW GREEN UNIT PD Power Dissipation Per Segment 75 m W VR Reverse Voltage Per Segment IAF Continuous Forward Current Per Segment 25 m A Peak Forward Current Per Segment IPF (1/10 Duty Cycle,0.1ms Pulse Width) 100 m A － Derating Linear From 25BC Per Segment 0.33 m A/BC Topr Operating Temperature Range －35BC to 85BC Tstg Storage Temperature Range －35BC to 85BC ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC ) SYMBOL PARAMETER TEST CONDITION MIN. TYP. MAX. UNIT VF Forward Voltage ,Any Segment IF = 20m A 2.2 2.8 V IR Reverse Current ,Any Segment VR = 5V 100 m A l P Peak Emission Wavelength IF = 20m A 568 nm l D Dominant Wavelength Δl Spectral Line Half－Width IF = 20m A IF = 20m A 570 nm 30 nm IV Luminous Intensity Per Segment IF =...
