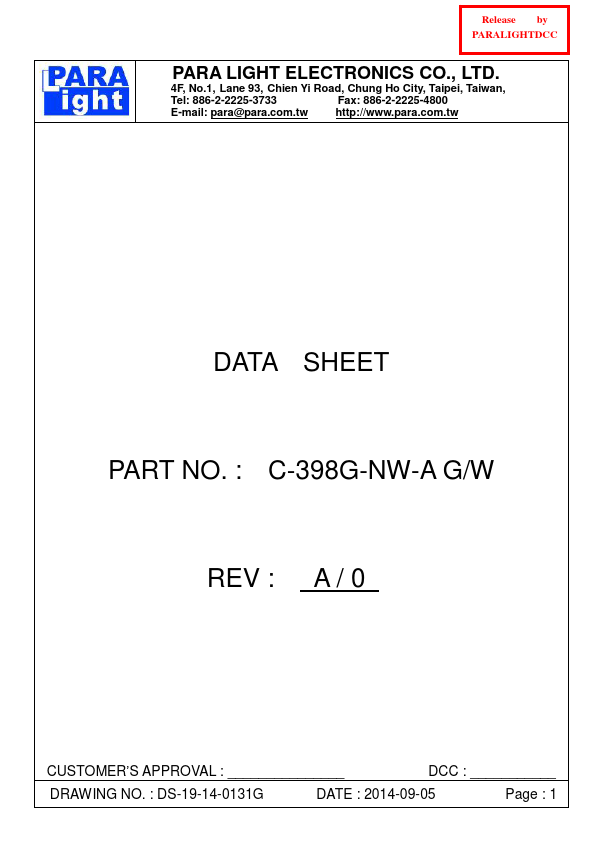

C-398G-NW-AG-W

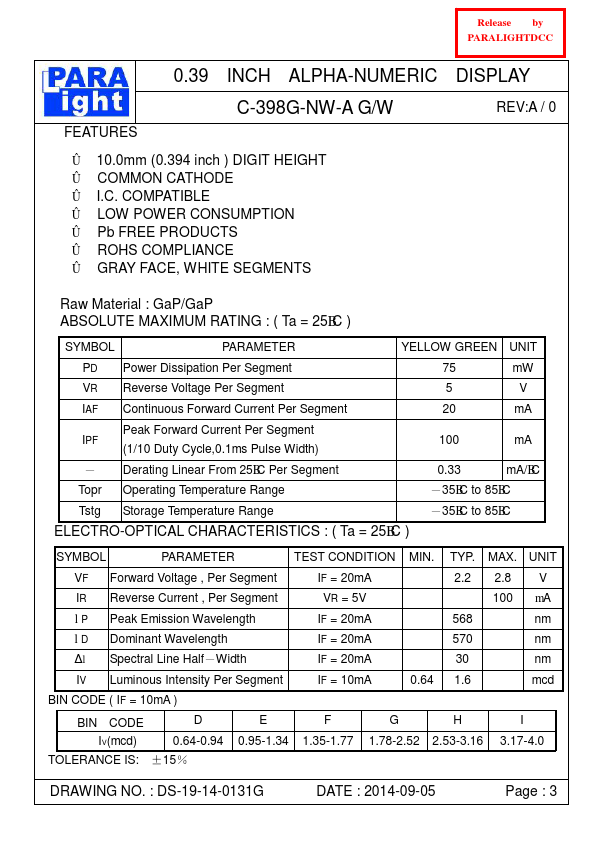

FEATURES
C-398G-NW-A G/W
REV:A / 0
Û 10.0mm (0.394 inch ) DIGIT HEIGHT Û MON CATHODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û Pb FREE PRODUCTS Û ROHS PLIANCE Û GRAY FACE, WHITE SEGMENTS
Raw Material : Ga P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
YELLOW GREEN UNIT
PD Power Dissipation Per Segment
75 m W
VR Reverse Voltage Per Segment
IAF Continuous Forward Current Per Segment
20 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
100 m A
－ Derating Linear From 25BC Per Segment
0.33 m A/BC
Topr Operating Temperature Range
－35BC to 85BC
Tstg Storage Temperature Range
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
TEST CONDITION MIN. TYP. MAX. UNIT
VF Forward Voltage , Per Segment
IF = 20m A
2.2 2.8 V
IR Reverse Current , Per Segment
VR = 5V
100 m A l P Peak Emission Wavelength
IF = 20m A
568 nm l D Dominant Wavelength Δl Spectral Line Half－Width
IF = 20m A IF = 20m A
570...
