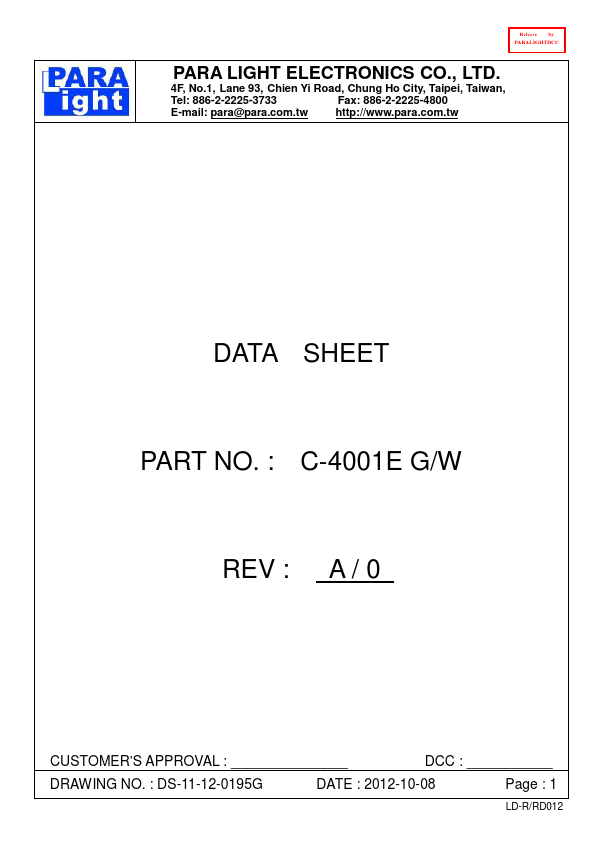

C-4001EG-W

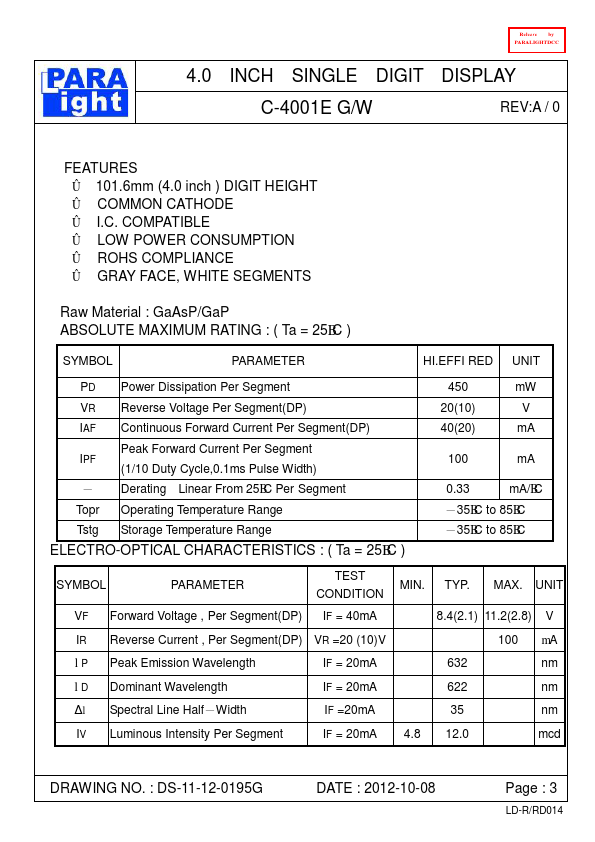

FEATURES
Û 101.6mm (4.0 inch ) DIGIT HEIGHT Û MON CATHODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û ROHS PLIANCE Û GRAY FACE, WHITE SEGMENTS
Raw Material : Ga As P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
HI.EFFI RED UNIT
PD Power Dissipation Per Segment VR Reverse Voltage Per Segment(DP) IAF Continuous Forward Current Per Segment(DP)
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width) － Derating Linear From 25BC Per Segment Topr Operating Temperature Range Tstg Storage Temperature Range
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
450 m W
20(10)
40(20) m A
100 m A
0.33 m A/BC
－35BC to 85BC
－35BC to 85BC
SYMBOL
PARAMETER
TEST MIN. TYP.
CONDITION
MAX. UNIT
VF Forward Voltage , Per Segment(DP) IF = 40m A
8.4(2.1) 11.2(2.8) V
IR Reverse Current , Per Segment(DP) VR =20 (10)V
100 m A l P Peak Emission Wavelength
IF = 20m A
632 nm l D Dominant Wavelength
IF = 20m A
622 nm
Δl Spectral Line Half－Width
IF =20m A
35 nm
IV...
