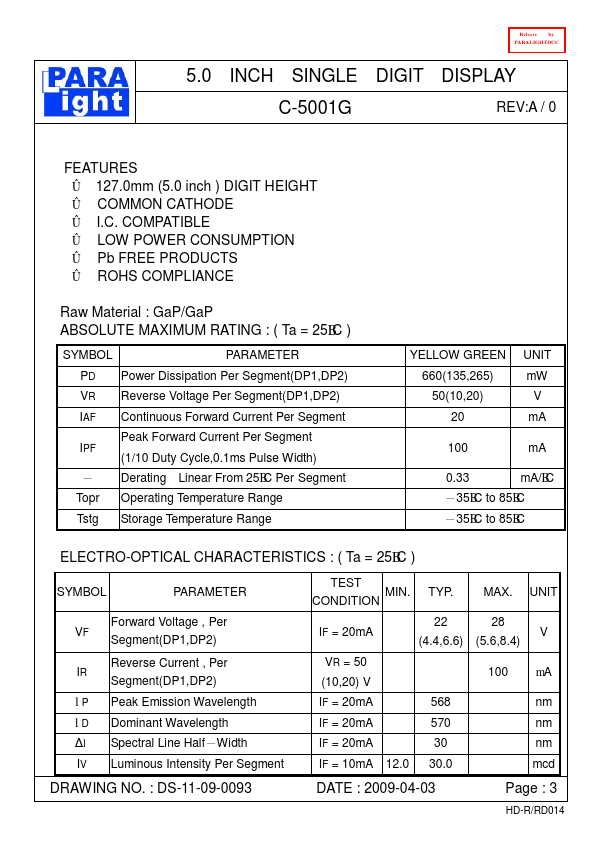

C-5001G
FEATURES
Û 127.0mm (5.0 inch ) DIGIT HEIGHT Û MON CATHODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û Pb FREE PRODUCTS Û ROHS PLIANCE
Raw Material : Ga P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
PD Power Dissipation Per Segment(DP1,DP2)
VR Reverse Voltage Per Segment(DP1,DP2)
IAF Continuous Forward Current Per Segment
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
－ Derating Linear From 25BC Per Segment
Topr Operating Temperature Range
Tstg Storage Temperature Range
YELLOW GREEN 660(135,265) 50(10,20) 20
UNIT m W
V m A
100 m A
0.33 m A/BC
－35BC to 85BC
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
Forward Voltage , Per VF
Segment(DP1,DP2)
Reverse Current , Per IR
Segment(DP1,DP2) l P Peak Emission Wavelength l D Dominant Wavelength Δl Spectral Line Half－Width IV Luminous Intensity Per Segment
TEST MIN. TYP.
CONDITION
MAX. UNIT
IF = 20m A
(4.4,6.6) (5.6,8.4)
VR = 50 (10,20) V
100...
