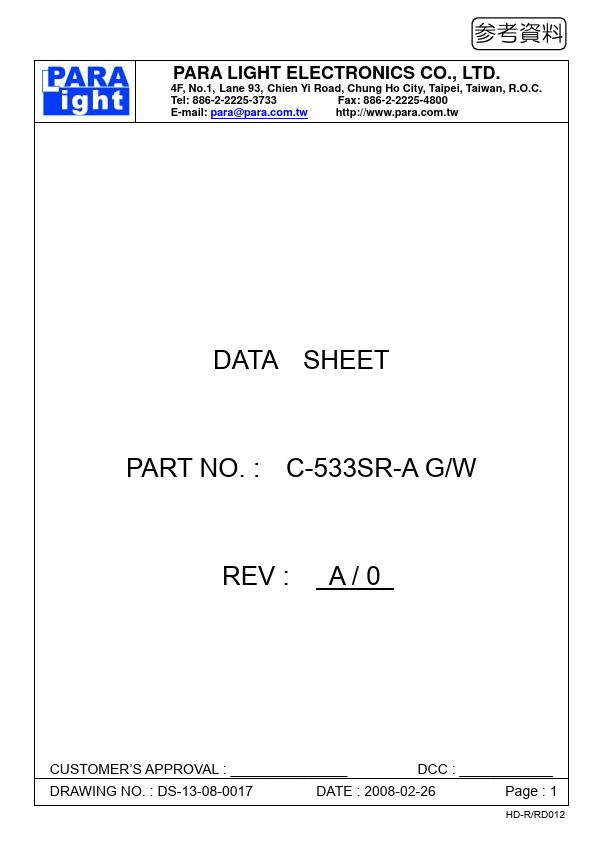

C-533SR-AG-W

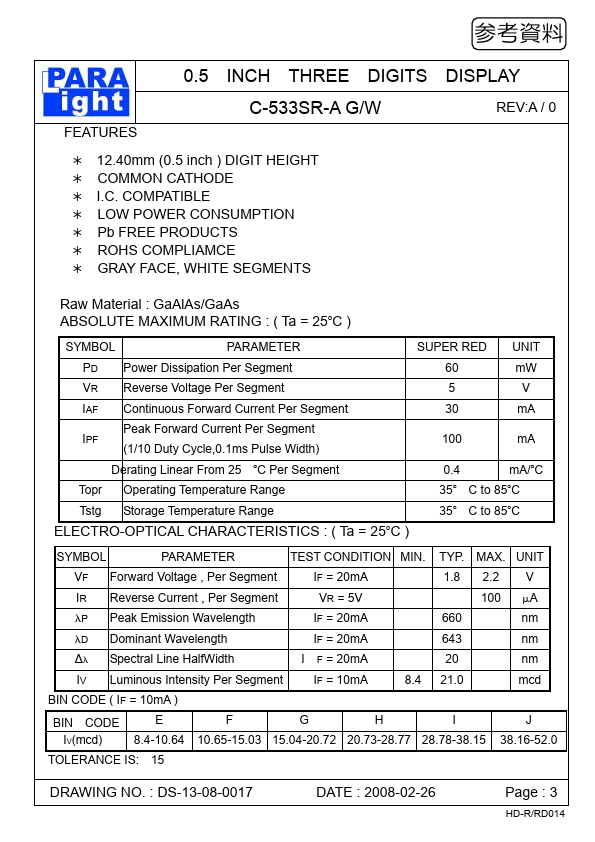

FEATURES
C-533SR-A G/W
REV:A / 0
12.40mm (0.5 inch ) DIGIT HEIGHT MON CATHODE I.C. PATIBLE LOW POWER CONSUMPTION Pb FREE PRODUCTS ROHS PLIAMCE GRAY FACE, WHITE SEGMENTS
Raw Material : Ga Al As/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
SUPER RED UNIT
PD Power Dissipation Per Segment
60 m W
VR Reverse Voltage Per Segment
IAF Continuous Forward Current Per Segment
30 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
100 m A
Derating Linear From 25 °C Per Segment
0.4 m A/°C
Topr Operating Temperature Range
35° C to 85°C
Tstg Storage Temperature Range
35° C to 85°C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
PARAMETER
TEST CONDITION MIN. TYP. MAX. UNIT
VF Forward Voltage , Per Segment
IF = 20m A
1.8 2.2 V
IR Reverse Current , Per Segment
VR = 5V
100 µA
λP Peak Emission Wavelength
IF = 20m A
660 nm
λD Dominant Wavelength
IF = 20m A
643 nm
∆λ Spectral Line Half...
