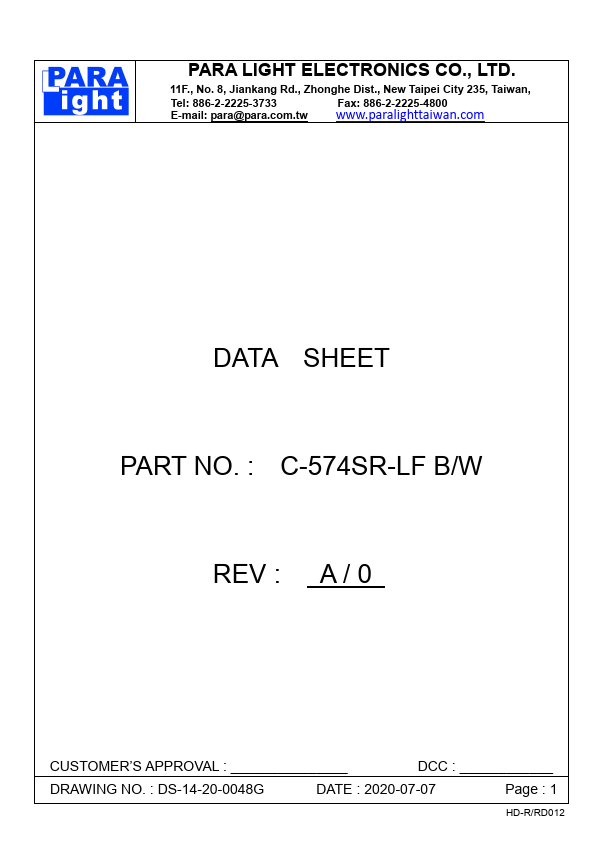

C-574SR-LFB-W

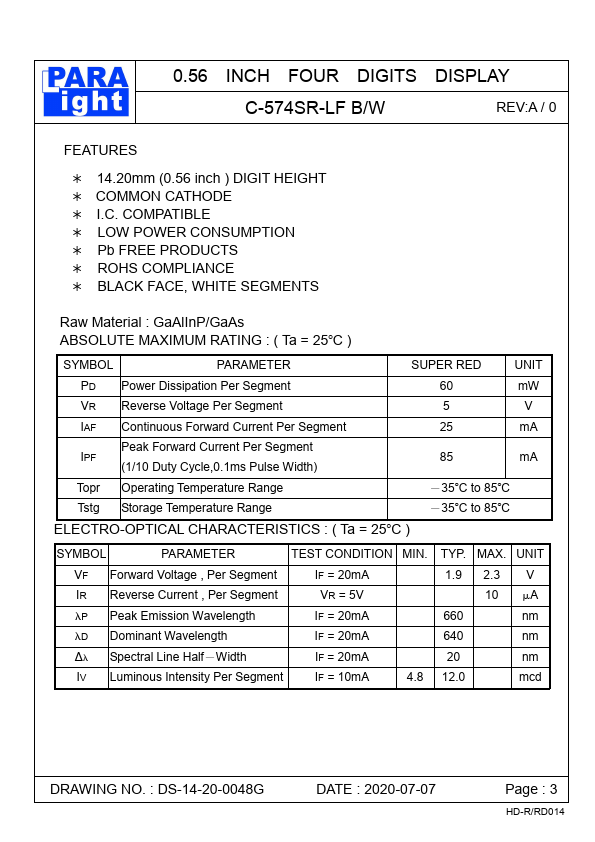

FEATURES
14.20mm (0.56 inch ) DIGIT HEIGHT MON CATHODE I.C. PATIBLE LOW POWER CONSUMPTION Pb FREE PRODUCTS ROHS PLIANCE BLACK FACE, WHITE SEGMENTS
Raw Material : Ga Al In P/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
SUPER RED
UNIT
PD Power Dissipation Per Segment
60 m W
VR Reverse Voltage Per Segment
IAF Continuous Forward Current Per Segment
25 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
85 m A
Topr Operating Temperature Range
－35°C to 85°C
Tstg Storage Temperature Range
－35°C to 85°C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
PARAMETER
TEST CONDITION MIN.
VF Forward Voltage , Per Segment
IF = 20m A
IR Reverse Current , Per Segment
VR = 5V
λP Peak Emission Wavelength
IF = 20m A
λD Dominant Wavelength
IF = 20m A
∆λ Spectral Line Half－Width
IF = 20m A
IV Luminous Intensity Per Segment
IF = 10m A
TYP. MAX. UNIT
1.9 2.3 V
10...
