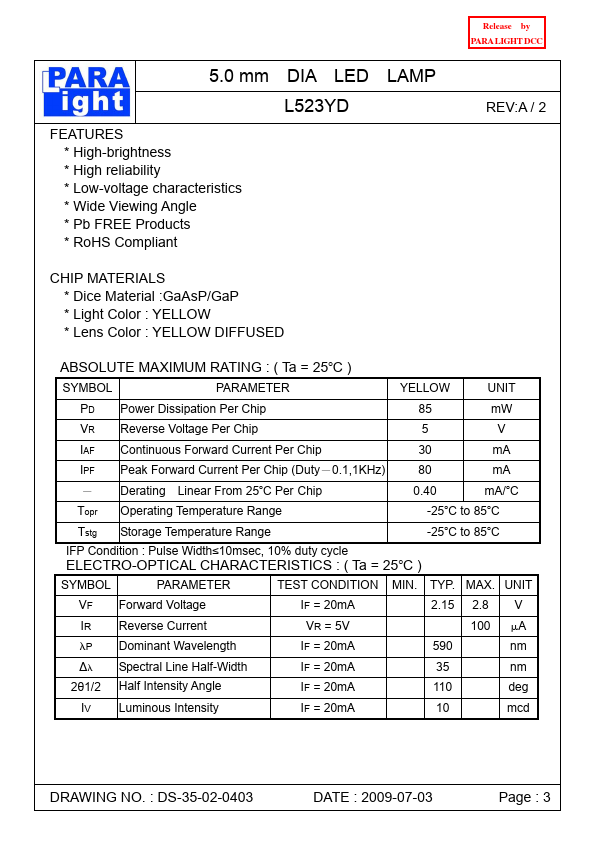

L523YD
FEATURES
- High-brightness
- High reliability
- Low-voltage characteristics
- Wide Viewing Angle
- Pb FREE Products
- Ro HS pliant
REV:A / 2
CHIP MATERIALS
- Dice Material :Ga As P/Ga P
- Light Color : YELLOW
- Lens Color : YELLOW DIFFUSED
ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
YELLOW
UNIT
PD Power Dissipation Per Chip
85 m W
VR Reverse Voltage Per Chip
IAF Continuous Forward Current Per Chip
30 m A
IPF Peak Forward Current Per Chip (Duty－0.1,1KHz)
80 m A
－ Derating Linear From 25°C Per Chip
0.40 m A/°C
Topr Operating Temperature Range
-25°C to 85°C
Tstg Storage Temperature Range
-25°C to 85°C
IFP Condition : Pulse Width≤10msec, 10% duty cycle
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
PARAMETER
TEST CONDITION MIN. TYP. MAX. UNIT
VF Forward Voltage
IF = 20m A
2.15 2.8 V
IR Reverse...
