LT3535YWCT-VPEW Datasheet | Para Light Electronics

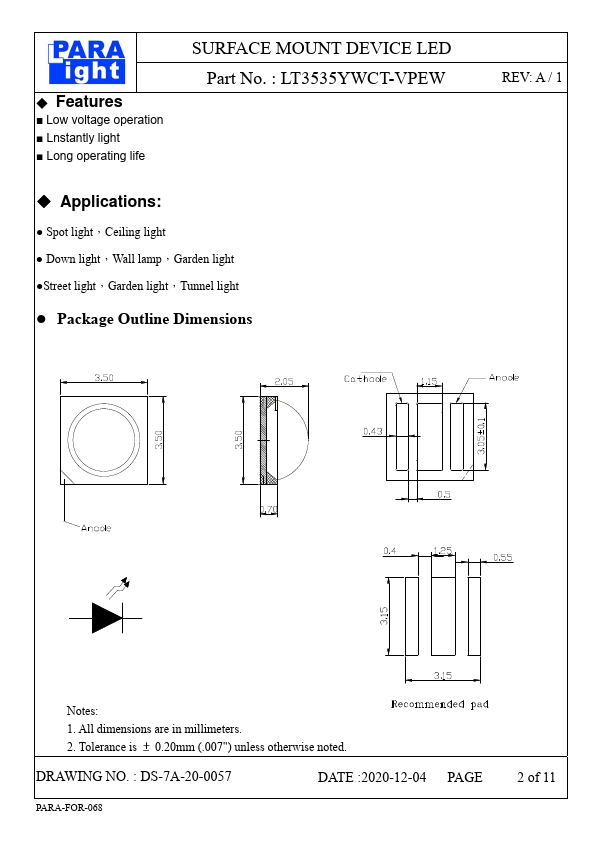

Features - Low voltage operation - Lnstantly light - Long operating life SURFACE MOUNT DEVICE LED Part No. : LT3535YWCT-VPEW - Applications: - Spot light，Ceiling light - Down light，Wall lamp，Garden light - Street light，Garden light，Tunnel light - Package Outline Dimensions REV: A / 1 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.20mm (.007") unless otherwise noted. DRAWING NO. : DS-7A-20-0057 DATE :2020-12-04 PAGE PARA-FOR-068 2 of 11 SURFACE MOUNT DEVICE LED Part No. : LT3535YWCT-VPEW - CHIP MATERIALS  Dice Material : Al Ga As/Ga As  Lens Color : Water Clear REV: A / 1 - Absolute Maximum Ratings(Ta=25℃) Parameter Forward Current ymbol IF Peak pukse C rrent Power Dissipation Reverse Voltage Operating Temperature Topr Storage Temperature Tstg Junction Temperature Tj IR Reflow Soldering Tsol Electro-Optical Characteristics (Ta=25℃) ating Unit 350 m...
