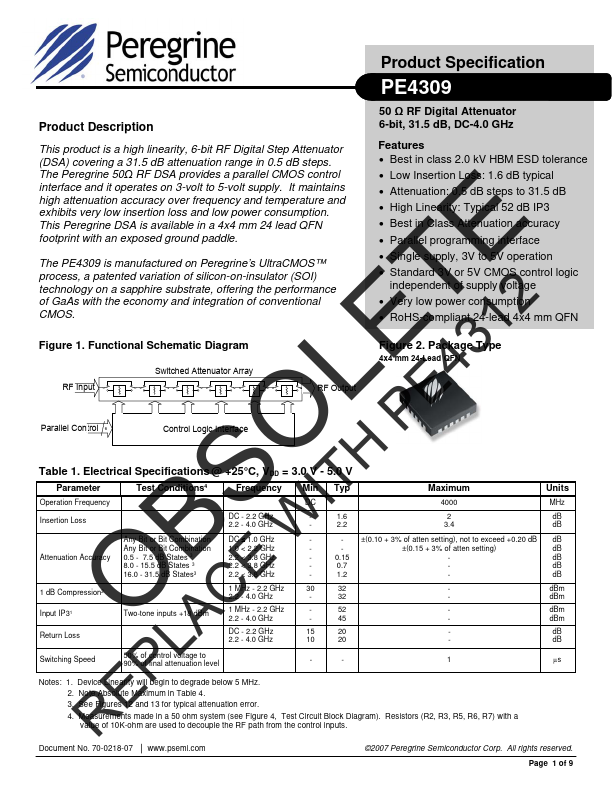

PE4309 - RF Digital Attenuator

Datasheet Summary

Description

This product is a high linearity, 6-bit RF Digital Step Attenuator (DSA) covering a 31.5 dB attenuation range in 0.5 dB steps.

The Peregrine 50Ω RF DSA provides a parallel CMOS control interface and it operates on 3-volt to 5-volt supply.

Features

  • Best in class 2.0 kV HBM ESD tolerance.
  • Low Insertion Loss: 1.6 dB typical.
  • Attenuation: 0.5 dB steps to 31.5 dB.
  • High Linearity: Typical 52 dB IP3.
  • Best in Class Attenuation accuracy.
  • Parallel programming interface.
  • Single supply, 3V to 5V operation.
  • Standard 3V or 5V CMOS control logic independent of supply voltage.
  • Very low power consumption.
  • RoHS-compliant 24-lead 4x4 mm QFN Figure 1. Functional Sche.
