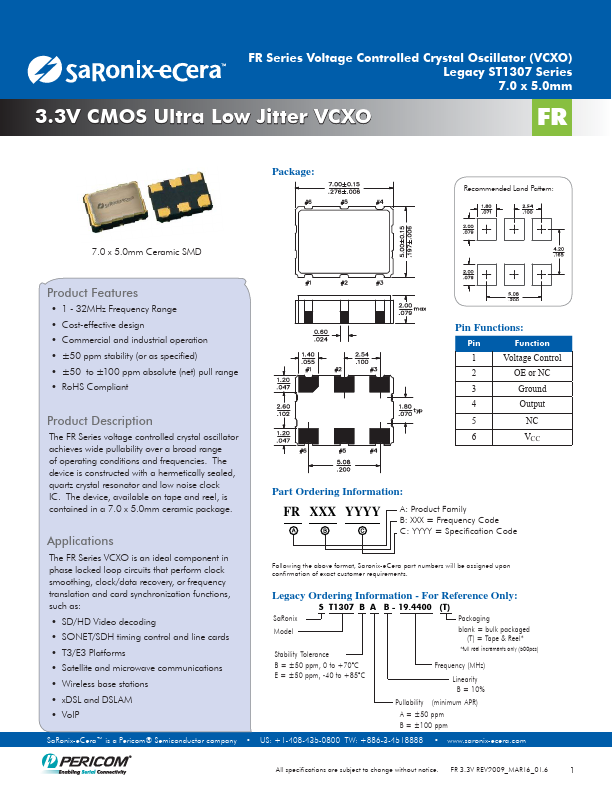

ST1307
ST1307 is 3.3V CMOS Ultra Low Jitter Voltage Controlled Crystal Oscillator manufactured by Pericom Semiconductor.
Features
- 1
- 32MHz Frequency Range
- Cost-effective design
- mercial and industrial operation
- ±50 ppm stability (or as specified)
- ±50 to ±100 ppm absolute (net) pull range
- Ro HS pliant
Pin Functions:
Pin
Function
Voltage Control
OE or NC
Ground
Output
Product Description
The FR Series voltage controlled crystal oscillator achieves wide pullability over a broad range of operating conditions and frequencies. The device is constructed with a hermetically sealed, quartz crystal resonator and low noise clock IC. The device, available on tape and reel, is contained in a 7.0 x 5.0mm ceramic package.
Applications
Part Ordering Information:
FR XXX YYYY
A: Product Family B: XXX = Frequency Code C: YYYY = Specification Code
The FR Series VCXO is an ideal ponent in phase locked loop circuits that perform clock smoothing, clock/data recovery, or frequency translation and card synchronization functions, such as:
- SD/HD Video decoding
- SONET/SDH timing control and line cards
- T3/E3 Platforms
- Satellite and microwave munications
- Wireless base stations
- x DSL and DSLAM
- Vo IP
Following the above format, Saronix-e Cera part numbers will be assigned upon confirmation of exact customer requirements.
Legacy Ordering Information
- For Reference Only:
S T1307 B A B
- 19.4400...
