74HC283 - 4-bit binary full adder

General Description

The 74HC283 is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL).

The 74HC283 is specified in compliance with JEDEC standard no.

7A.

Key Features

  • s High-speed 4-bit binary addition s Cascadable in 4-bit increments s Fast internal look-ahead carry s Low-power dissipation s Complies with JEDEC standard no. 7A s ESD protection: x HBM EIA/JESD22-A114-B exceeds 2000 V x MM EIA/JESD22-A115-A exceeds 200 V. s Multiple package options s Specified from.
  • 40 °C to +80 °C and from.

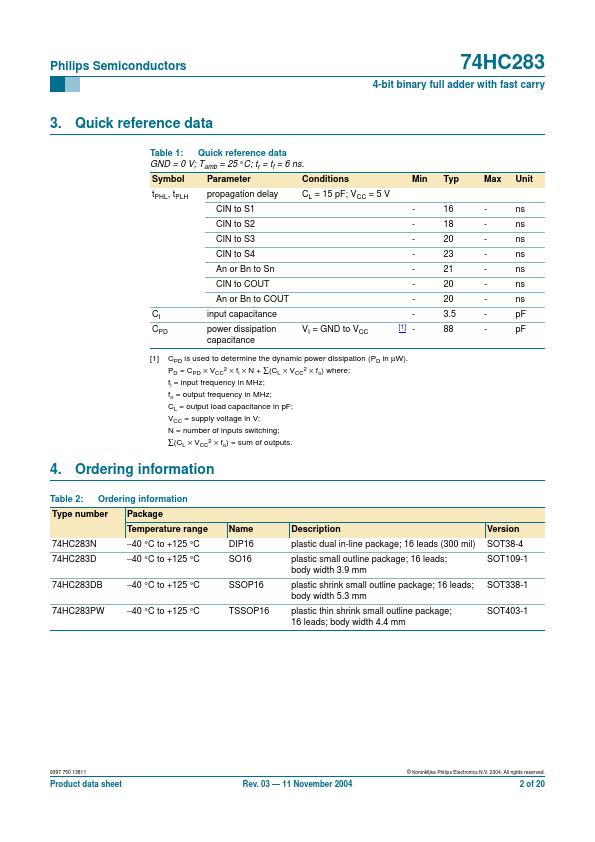

  • 40 °C to +125 °C. Philips Semiconductors 74HC283 4-bit binary full adder with fast carry 3. Quick reference data Table 1: Quick reference data GND = 0 V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74HC280 9-bit odd/even parity generator/checker nexperia
74HC280D 9-bit odd/even parity generator/checker nexperia
74HC20 Dual 4-input NAND gate nexperia
74HC20-Q100 Dual 4-input NAND gate nexperia
74HC20D Dual 4-input NAND gate nexperia

Other Datasheets by Philips Semiconductors (now NXP Semiconductors)

Part Number Description
74HC280 9-bit odd/even parity generator/checker
74HC20 Dual 4-input NAND gate
74HC221 Dual non-retriggerable monostable multivibrator
74HC237 3-to-8 line decoder/demultiplexer
74HC238 3-to-8 line decoder/demultiplexer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

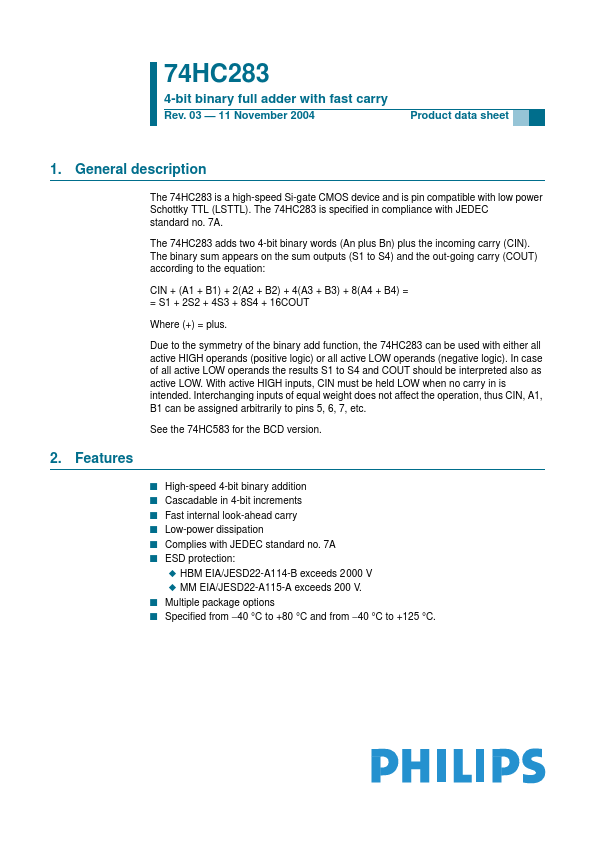

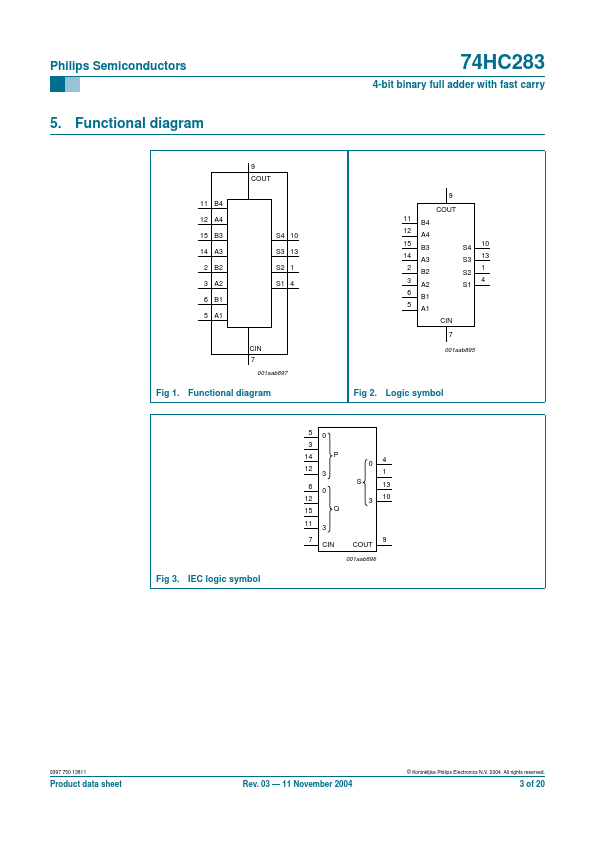

74HC283 4-bit binary full adder with fast carry Rev. 03 — 11 November 2004 Product data sheet 1. General description The 74HC283 is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC283 is specified in compliance with JEDEC standard no. 7A. The 74HC283 adds two 4-bit binary words (An plus Bn) plus the incoming carry (CIN). The binary sum appears on the sum outputs (S1 to S4) and the out-going carry (COUT) according to the equation: CIN + (A1 + B1) + 2(A2 + B2) + 4(A3 + B3) + 8(A4 + B4) = = S1 + 2S2 + 4S3 + 8S4 + 16COUT Where (+) = plus. Due to the symmetry of the binary add function, the 74HC283 can be used with either all active HIGH operands (positive logic) or all active LOW operands (negative logic).
