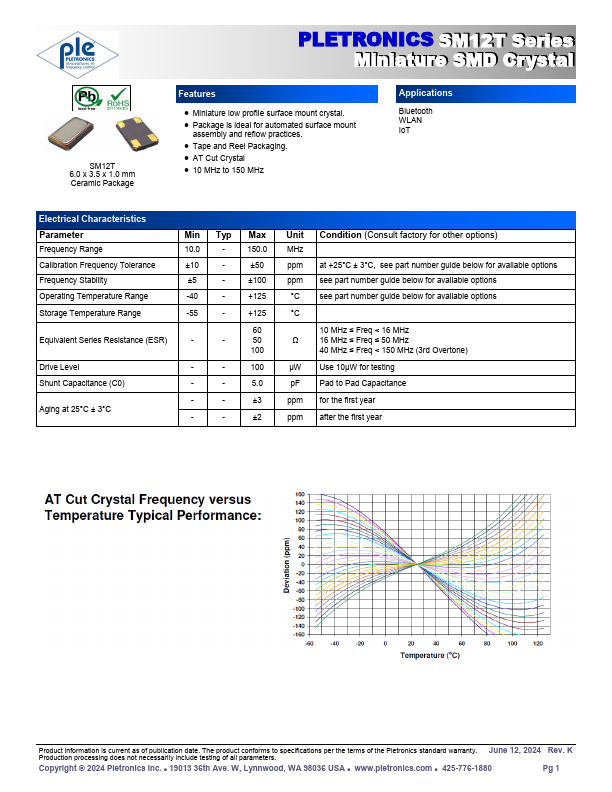

SM12T-18-14.31818M
Features
- Miniature low profile surface mount crystal.
- Package is ideal for automated surface mount assembly and reflow practices.
- Tape and Reel Packaging.
- AT Cut Crystal
- 10 MHz to 150 MHz
Applications
Bluetooth WLAN Io T
Electrical Characteristics Parameter Frequency Range Calibration Frequency Tolerance Frequency Stability Operating Temperature Range Storage Temperature Range
Equivalent Series Resistance (ESR)
Drive Level Shunt Capacitance (C0)
Aging at 25°C ± 3°C
Min Typ Max
- 150.0
±10
- ±50
±5
- ±100
-40
- +125
-55
- +125
- -
- -
- -
- -
±3
- -
±2
Unit MHz ppm ppm °C °C
Ω
µW p F ppm ppm

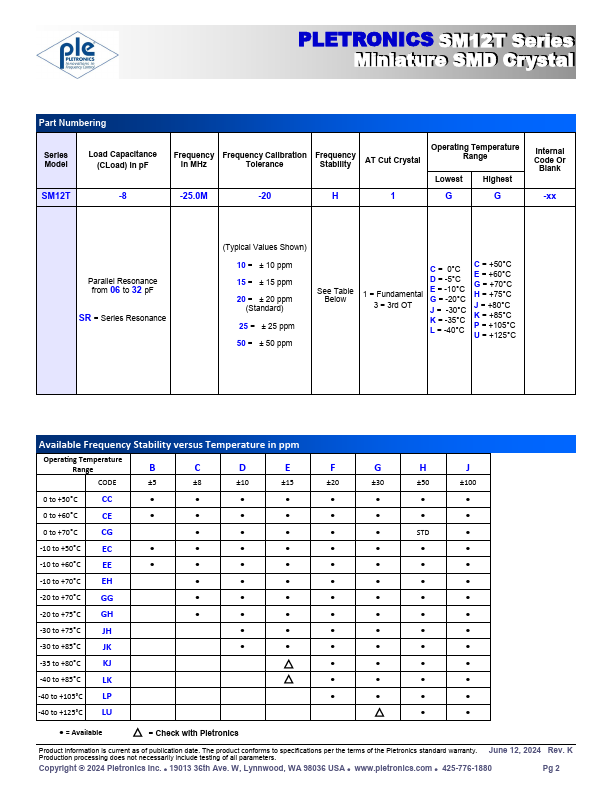

Condition (Consult factory for other options) at +25°C ± 3°C, see part number guide below for available options see part number guide below for available options see part number guide below for available options
10 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq ≤ 50 MHz 40 MHz ≤ Freq < 150 MHz (3rd Overtone) Use 10µW for testing Pad to Pad...
