This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | SM12T-18-20.0M |
|---|---|
| Datasheet | SM12T-18-20.0M SM12T-18-12.0M-50H1LK Datasheet (PDF) |
| File Size | 715.63 KB |
| Manufacturer | Pletronics |
| Description | Miniature SMD Crystal |
|
|

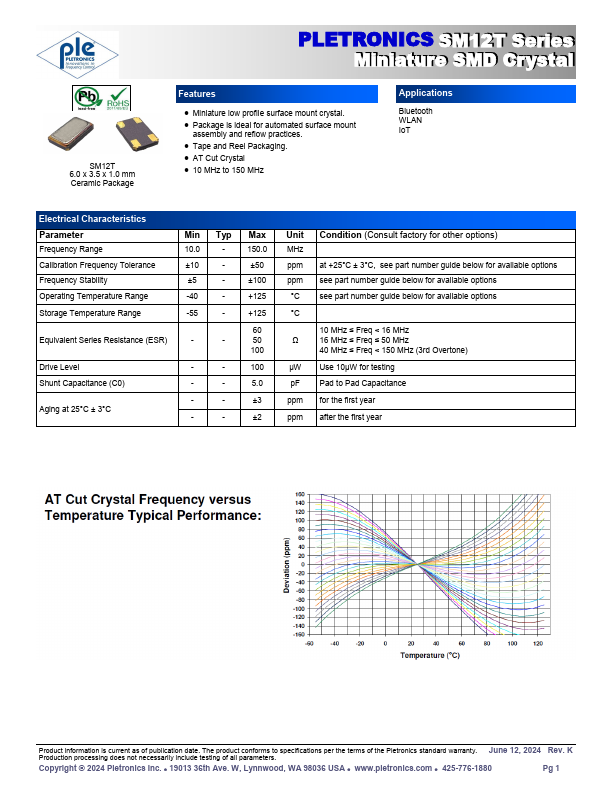

SM12T 6.0 x 3.5 x 1.0 mm Ceramic Package PLETRONICS SSMM1122TT SSeerriieess Miniature SMD Crystal.
| Part Number | Description |
|---|---|
| SM12T-18-25.0M | Miniature SMD Crystal |
| SM12T-18-12.0M-50H1LK | Miniature SMD Crystal |
| SM12T-18-14.31818M | Miniature SMD Crystal |
| SM1145B | CMOS COMPATIBLE WITH TRI-STATE OUTPUT |
| SM1145BD | CMOS COMPATIBLE WITH TRI-STATE OUTPUT |
| SM1145C | CMOS COMPATIBLE WITH TRI-STATE OUTPUT |
| SM1145JD | CMOS COMPATIBLE WITH TRI-STATE OUTPUT |
| SM1145PL | CMOS COMPATIBLE WITH TRI-STATE OUTPUT |
