PL2771
PL2771 is SuperSpeed USB 3.0 SATA Bridge Controller manufactured by Prolific.
Description
- Revised Section 1.3 (Target Applications)
- Revised Section 5.2 (Core Power Supply)
- Revised Section 5.5 (Suspend Current)
- Revised Section 1.2 and added Target Applications section
- Revised Section 5.1
- Formal version
0.9E
- Correct LQFP64 Pin Assignment and Description
0.9D
- Modified Pin Assignment and Description
0.9C
- Added QFN48 Package Information
0.9B
- Updated LQFP64 Package Information
Date
September 1, 2010
July 26, 2010 July 7, 2010 February 3, 2010 January 29, 2010 December 22, 2009 November 27, 2009

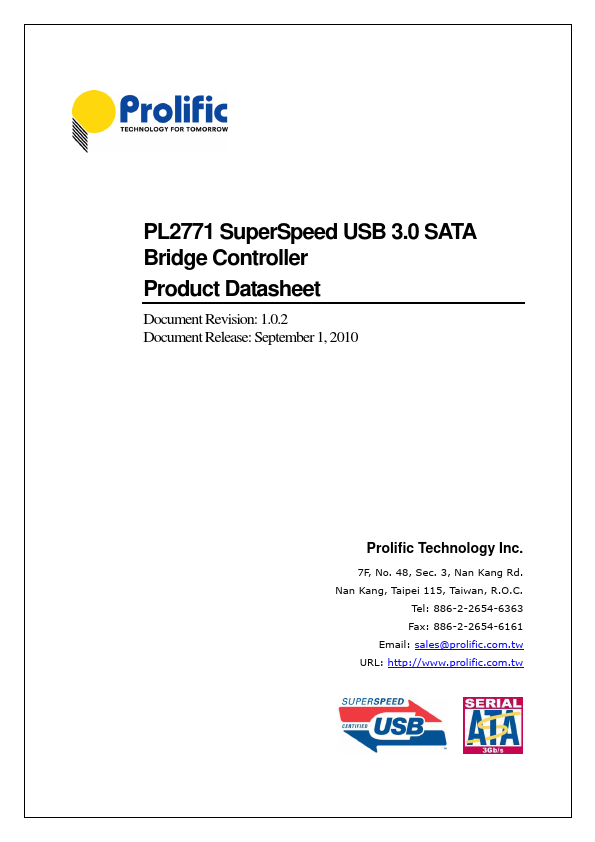

PL2771 (Chip Rev A) Product Datasheet
-3-
Document Version 1.0.2
Revised Date: September 1, 2010 ds_PL2771_v1.0.2
Table of Contents
1.0 PRODUCT OVERVIEW
6 1.1 Overview
6 1.2 Features
6 1.3 Target Applications 7 1.4 Block Diagram 8
2.0 PIN ASSIGNMENT DIAGRAM 9 2.1...
