GBLC05C - ULTRA LOW CAPACITANCE TVS ARRAY

Download the GBLC05C datasheet PDF. This datasheet also covers the GBLC03 variant, as both devices belong to the same ultra low capacitance tvs array family and are provided as variant models within a single manufacturer datasheet.

General Description

The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones.

Key Features

  • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge.
  • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge).
  • 350 Watts Peak Pulse Pow.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBLC03-ProtekDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBLC05C
Manufacturer Protek Devices
File Size 346.94 KB
Description ULTRA LOW CAPACITANCE TVS ARRAY
Datasheet download datasheet GBLC05C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBLC05C 350W Surface Mount Transient Voltage Suppressor Array CITC
GBLC05 350W Surface Mount Transient Voltage Suppressor Array CITC
GBLC03 350W Surface Mount Transient Voltage Suppressor Array CITC
GBLC03C 350W Surface Mount Transient Voltage Suppressor Array CITC
GBLC08 350W Surface Mount Transient Voltage Suppressor Array CITC

Other Datasheets by Protek Devices

Part Number Description
GBLC05CDN ULTRA LOW CAPACITANCE TVS ARRAY
GBLC05CI ULTRA LOW CAPACITANCE TVS ARRAY
GBLC05CIDFN ULTRA LOW CAPACITANCE TVS ARRAY
GBLC05 ULTRA LOW CAPACITANCE TVS ARRAY
GBLC05I ULTRA LOW CAPACITANCE TVS ARRAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

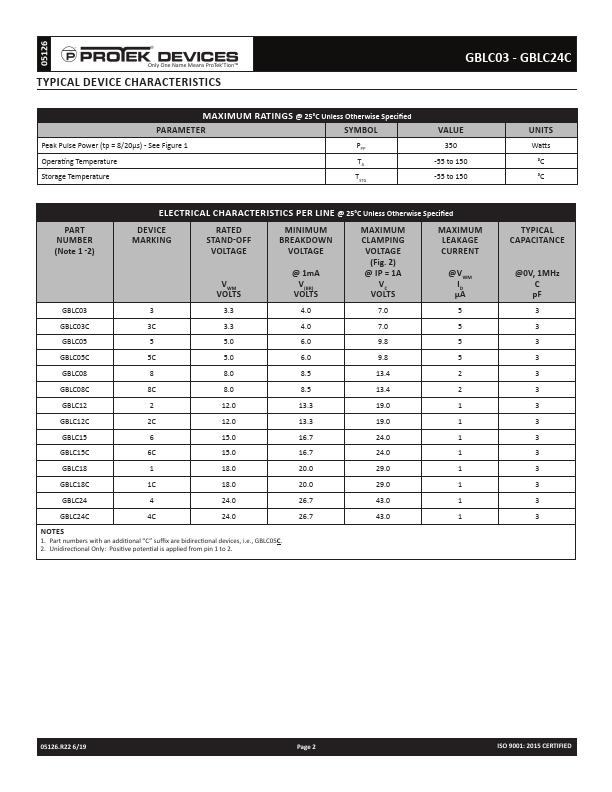

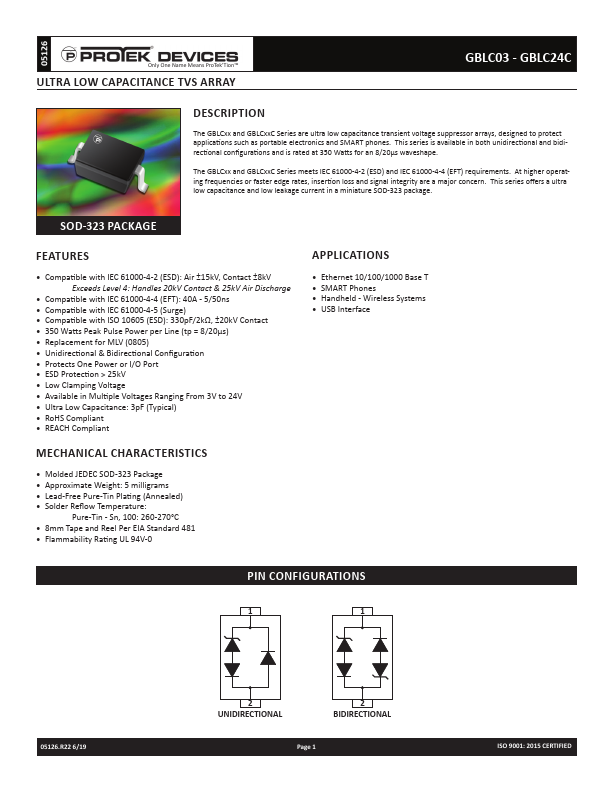

05126 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE TVS ARRAY GBLC03 - GBLC24C DESCRIPTION The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The GBLCxx and GBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
