PSOT15 - STANDARD CAPACITANCE TVS ARRAY

Product Overview

Protek Devices

Datasheet Details

Part number	PSOT15
Manufacturer	Protek Devices
File Size	452.71 KB
Description	STANDARD CAPACITANCE TVS ARRAY
Datasheet	PSOT15 Datasheet
Note	This datasheet PDF includes multiple part numbers: PSOT15, PSOT03. Please refer to the document for exact specifications by model.

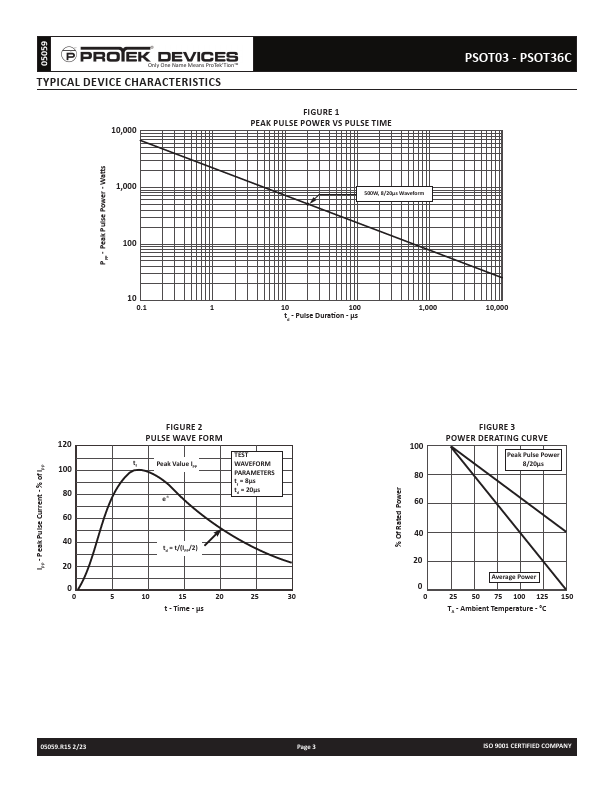

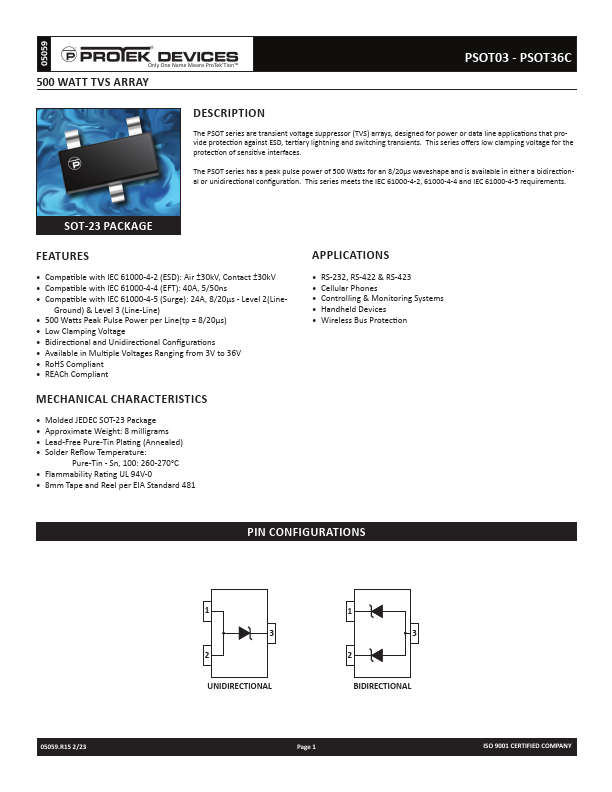

Additional preview pages of the PSOT15 datasheet.

Product details

Description

The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients.

Features

Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV.
Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line).
500 Watts Peak Pulse Power per Line(tp = 8/20µs).
Low Clamping Voltage.
Bidirectional and Unidirectional Configurations.
Available in Multiple Voltages Ranging from 3V to 36V.
RoHS Compliant.
REACh Com.
