Puya Semiconductor P24C02A
The P24C02A is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 2Kbits (256 bytes), which is organized in 8 bytes per page.| Part No. | P24C02A |
|---|---|
| Datasheet | P24C02A Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |

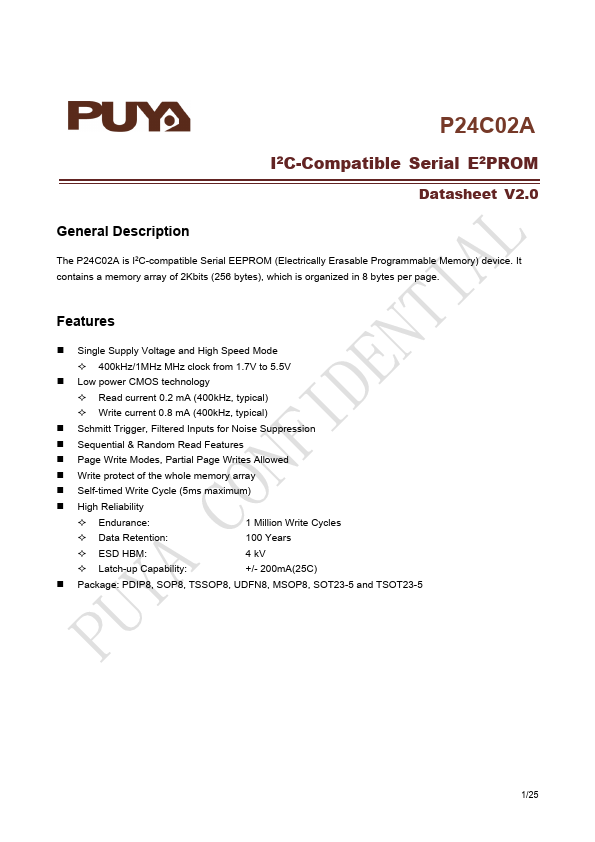

GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and High Speed Mode● 400 KHz/1 MHz clock from 1.7 V to 5.5 V
● Low power CMOS technology
● Read current 0.2 mA (400 kHz, typical)
● Write current 0.8 mA (400 kHz, typical)
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Sequential & Random Read
FEATURES
● Page Write Modes, Partial Page Writes Allowed● Write protect of the whole memory array
● Self-timed Write Cycle (5 ms maximum)
● High Reliability
● Endurance: 1 Million Write Cycles
● Data Retention: 100 Years
● ESD HBM: 4 kV
● Latch-up Capability: +/- 200 mA(25 C)

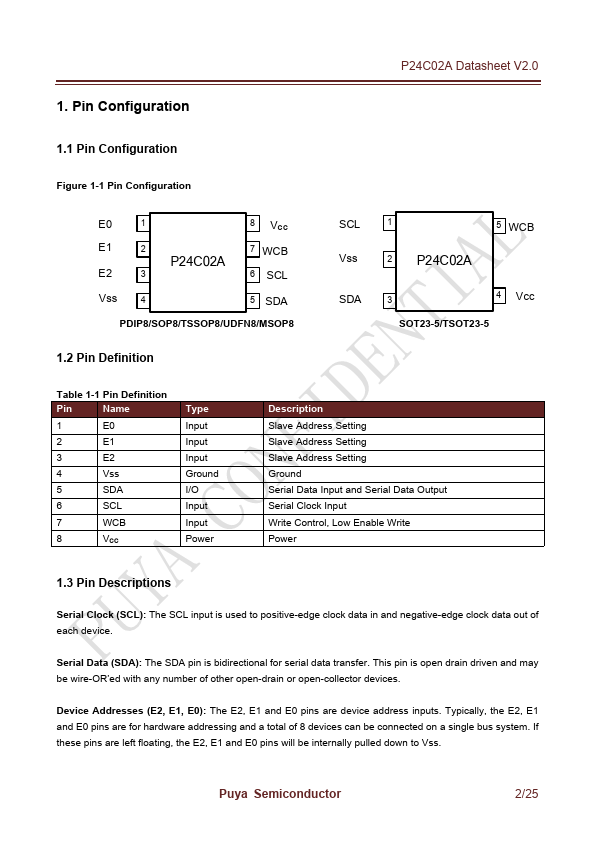

● Package: PDIP8, SOP8(150mil), TSSOP8, UDFN8, MSOP8, SOT23-5 and TSOT23-5 1/25 1. Pin Configuration P24C02A Datasheet V2.1 1.1 Pin Configuration Figure 1-1 Pin Configuration E0 1 8 VCC SCL E1 2 7 WCB P24C02A Vss E2 3 6 SCL Vss 4 5 SDA SDA PDIP8/SOP8(150mil)/TSSOP8/UDFN8/MSOP8 1 5 WCB 2 P24C02A 3 4 Vcc SOT23-5/TSOT23-5 1.2 Pin Definition Table 1-1 Pin Definition Pin Name 1 E0 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 WCB...
