Puya Semiconductor P24C08D

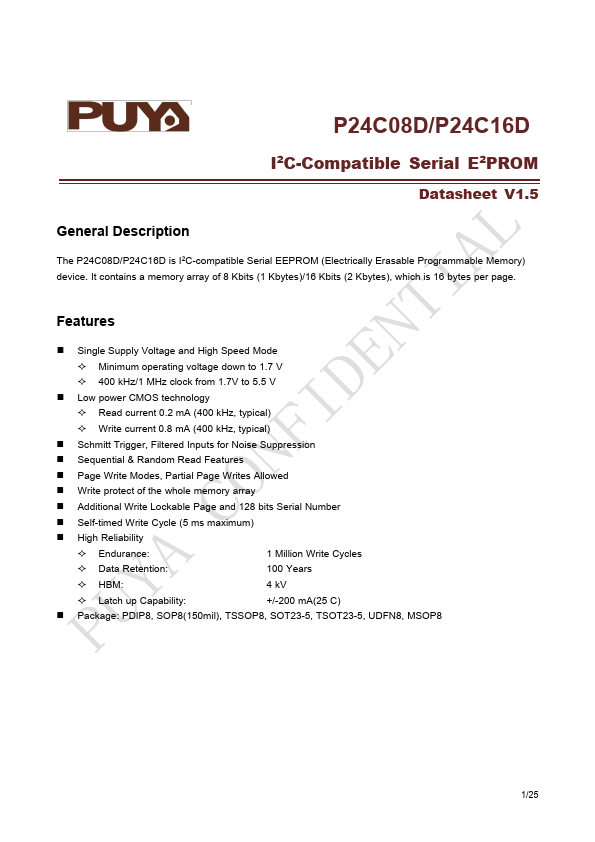

The P24C08D/P24C16D is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 8 Kbits (1 Kbytes)/16 Kbits (2 Kbytes), which is 16 bytes per page.| Part No. | P24C08D |
|---|---|
| Datasheet | P24C08D Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and High Speed Mode● Minimum operating voltage down to 1.7 V
● 400 kHz/1 MHz clock from 1.7V to 5.5 V
● Low power CMOS technology
● Read current 0.2 mA (400 kHz, typical)
● Write current 0.8 mA (400 kHz, typical)
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Sequential & Random Read
FEATURES
● Page Write Modes, Partial Page Writes Allowed● Write protect of the whole memory array
● Additional Write Lockable Page and 128 bits Serial Number
● Self-timed Write Cycle (5 ms maximum)
● High Reliability
● Endurance: 1 Million Write Cycles
● Data Retention: 100 Years
● HBM: 4 kV
● Latch up Capability: +/-200 mA(25 C)

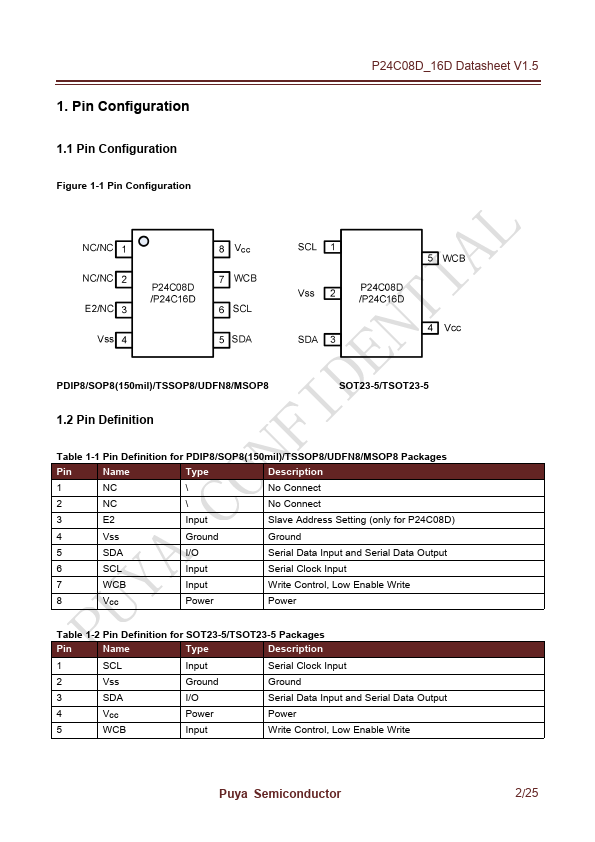

● Package: PDIP8, SOP8(150mil), TSSOP8, SOT23-5, TSOT23-5, UDFN8, MSOP8 1/25 1. Pin Configuration 1.1 Pin Configuration Figure 1-1 Pin Configuration P24C08D_16D Datasheet V1.5 PDIP8/SOP8(150mil)/TSSOP8/UDFN8/MSOP8 1.2 Pin Definition SOT23-5/TSOT23-5 Table 1-1 Pin Definition for PDIP8/SOP8(150mil)/TSSOP8/UDFN8/MSOP8...
