Puya Semiconductor P25C16H

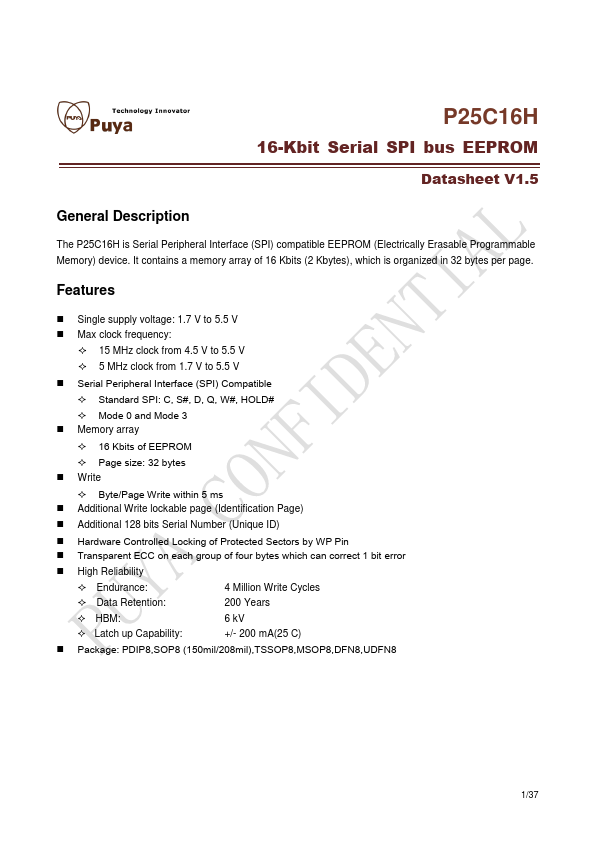

The P25C16H is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 16 Kbits (2 Kbytes), which is organized in 32 bytes per page.| Part No. | P25C16H |
|---|---|
| Datasheet | P25C16H Download |
| Manufacturer |  Puya Semiconductor |
| Description | 16-Kbit Serial SPI bus EEPROM |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
● Single supply voltage: 1.7 V to 5.5 V● Max clock frequency:
● 15 MHz clock from 4.5 V to 5.5 V
● 5 MHz clock from 1.7 V to 5.5 V
● Serial Peripheral Interface (SPI) Compatible
● Standard SPI: C, S#, D, Q, W#, HOLD#
● Mode 0 and Mode 3
● Memory array
● 16 Kbits of EEPROM
● Page size: 32 bytes
● Write
● Byte/Page Write within 5 ms
● Additional Write lockable page (Identification Page)
● Additional 128 bits Serial Number (Unique ID)
● Hardware Controlled Locking of Protected Sectors by WP Pin
● Transparent ECC on each group of four bytes which can correct 1 bit error
● High Reliability
●Endurance: 4 Million Write Cycles
●Data Retention: 200 Years
●HBM: 6 kV
●Latch up Capability: +/- 200 mA(25 C)

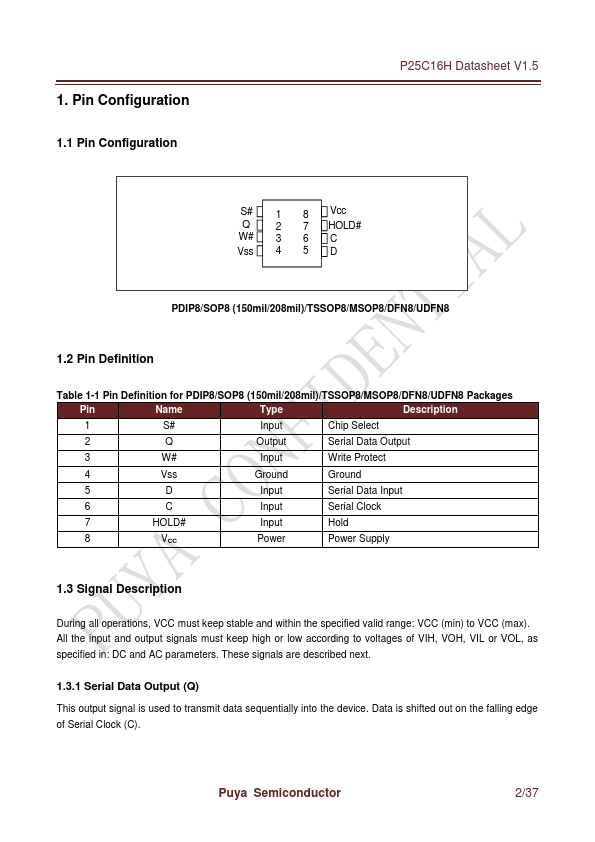

● Package: PDIP8,SOP8 (150mil/208mil),TSSOP8,MSOP8,DFN8,UDFN8 1/37 1. Pin Configuration 1.1 Pin Configuration P25C16H Datasheet V1.5 S# 1 8 Vcc Q 2 7 HOLD# W# 3 6 C Vss 4 5 D PDIP8/SOP8 (150mil/208mil)/TSSOP8/MSOP8/DFN8/UDFN8 1.2 Pin Definition Table 1-1 Pin Def...
