P25C32H Datasheet PDF - Puya 32-Kbit Serial SPI bus EEPROM Specs

P25C32H - 32-Kbit Serial SPI bus EEPROM

Datasheet Summary

Description

The P25C32H is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) device.

It contains a memory array of 32 Kbits (4 Kbytes), which is organized in 32 bytes per page.

Features

Single supply voltage: 1.7 V to 5.5 V.
Max clock frequency:.
15 MHz clock from 4.5 V to 5.5 V.
5 MHz clock from 1.7 V to 5.5 V.
Serial Peripheral Interface (SPI) Compatible.
Standard SPI: C, S#, D, Q, W#, HOLD#.
Mode 0 and Mode 3.
Memory array.
32 Kbits of EEPROM.
Page size: 32 bytes.
Write.
Byte/Page Write within 5 ms.
Additional Write lockable page (Identification Page).
Additional 128 bits Serial Number (Unique.

Datasheet Details

Part number	P25C32H
Manufacturer	Puya
File Size	589.51 KB
Description	32-Kbit Serial SPI bus EEPROM
Datasheet	P25C32H Datasheet

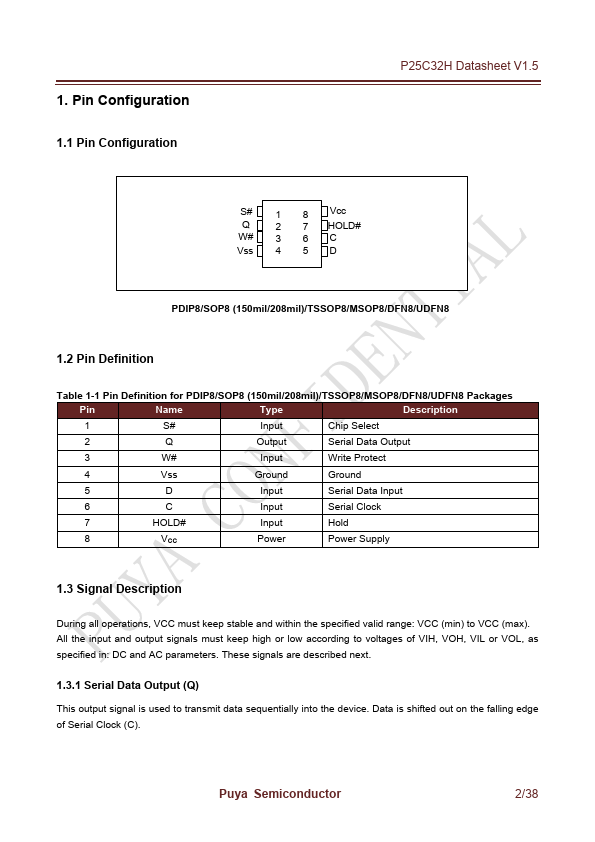

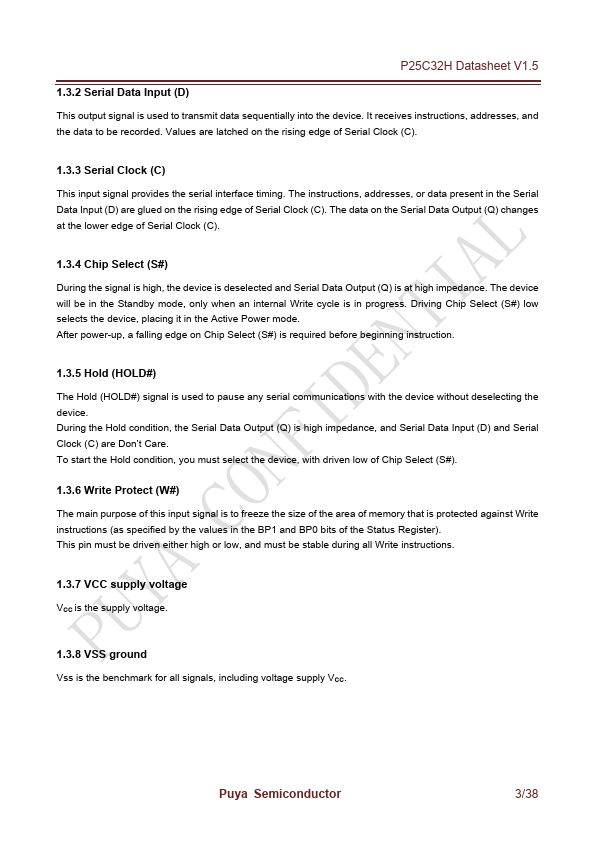

Additional preview pages of the P25C32H datasheet.

📁 Similar Datasheet

P2500 - Power Amplifier (Yamaha)

P2500A - Standard Recovery Rectifier Diodes (Diotec)

P2500A - Standard silicon rectifier diodes (Semikron)

P2500AA61L - SIDACtor Device (Littelfuse)

P2500ATL - Standard silicon rectifier diodes (Semikron)

P2500B - Standard Recovery Rectifier Diodes (Diotec)

P2500B - Standard silicon rectifier diodes (Semikron)

P2500BTL - Standard silicon rectifier diodes (Semikron)

P2500D - Standard Recovery Rectifier Diodes (Diotec)

P2500D - Standard silicon rectifier diodes (Semikron)

Full PDF Text Transcription

Click to expand full text

P25C32H 32-Kbit Serial SPI bus EEPROM Datasheet V1.4 General Description The P25C32H is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 32 Kbits (4 Kbytes), which is organized in 32 bytes per page. Features  Single supply voltage: 1.7 V to 5.5 V  Max clock frequency:  15 MHz clock from 4.5 V to 5.5 V  5 MHz clock from 1.7 V to 5.
