P25C512F Overview
Description

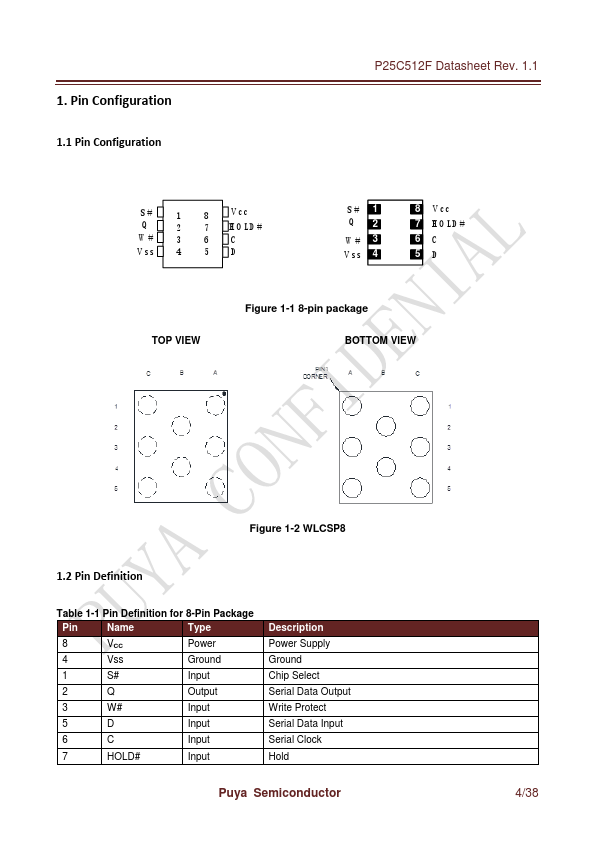

Power Supply Ground Chip Select Serial Data Output Write Protect Serial Data Input Serial Clock Hold Puya Semiconductor 4/38 P25C512F Datasheet Rev. 1.1 Table 1-2 Pin Definition for Package WLCSP8 Pin Name Type A5 S# Input Chip Select B4 Q Output Serial Data Output C3 W# Input Write Protect C5 Vss Ground Ground C1 D Input Serial Data Input B2 C Input Serial Clock A3 HOLD# Input Hold A1 VCC Power Power Supply Description 1.3 Signal Description During all operations, VCC must keep stable and within the specified valid range: VCC (min) to.
Key Features
- Single supply voltage: 1.65 V to 3.6 V
- Max clock frequency: 5 MHz
- Serial Peripheral Interface (SPI) Compatible Standard SPI: C, S#, D, Q, W#, HOLD#
- Memory array – 512 Kbit of EEPROM – Page size: 128 bytes
- Write – Byte/Page Write within 5ms
