P25Q05L
P25Q05L is Serial Multi I/O Flash Memory manufactured by Puya Semiconductor.
- Part of the P25Q40L comparator family.
- Part of the P25Q40L comparator family.

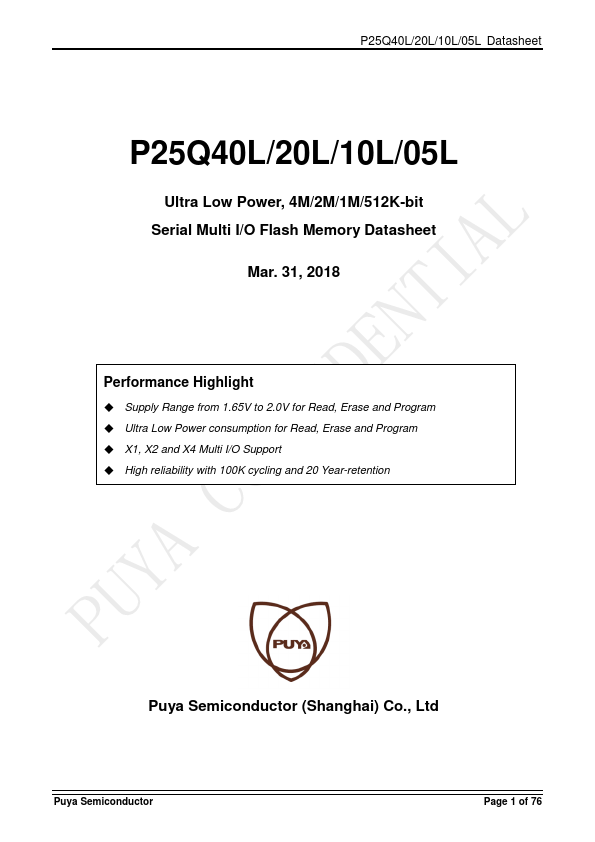

P25Q40L/20L/10L/05L Datasheet
P25Q40L/20L/10L/05L
Ultra Low Power, 4M/2M/1M/512K-bit Serial Multi I/O Flash Memory Datasheet
Mar. 31, 2018
Performance Highlight
- Supply Range from 1.65V to 2.0V for Read, Erase and Program
- Ultra Low Power consumption for Read, Erase and Program
- X1, X2 and X4 Multi I/O Support
- High reliability with 100K cycling and 20 Year-retention
Puya Semiconductor (Shanghai) Co., Ltd
Puya Semiconductor
Page 1 of 76
P25Q40L/20L/10L/05L Datasheet

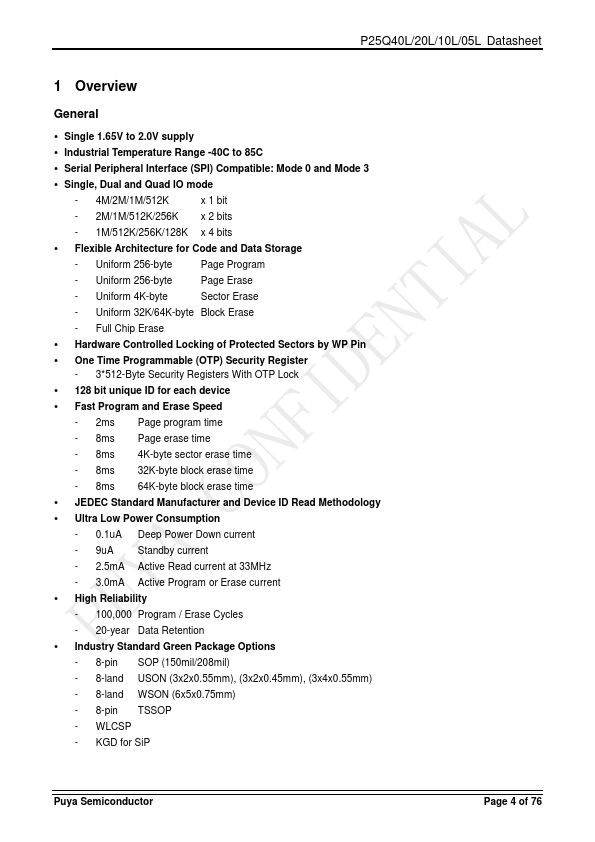

1 Overview
General
- Single 1.65V to 2.0V supply
- Industrial Temperature Range -40C to 85C
- Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3
- Single, Dual and Quad IO mode
- 4M/2M/1M/512K x 1...
