P25Q11L Datasheet | Puya Semiconductor

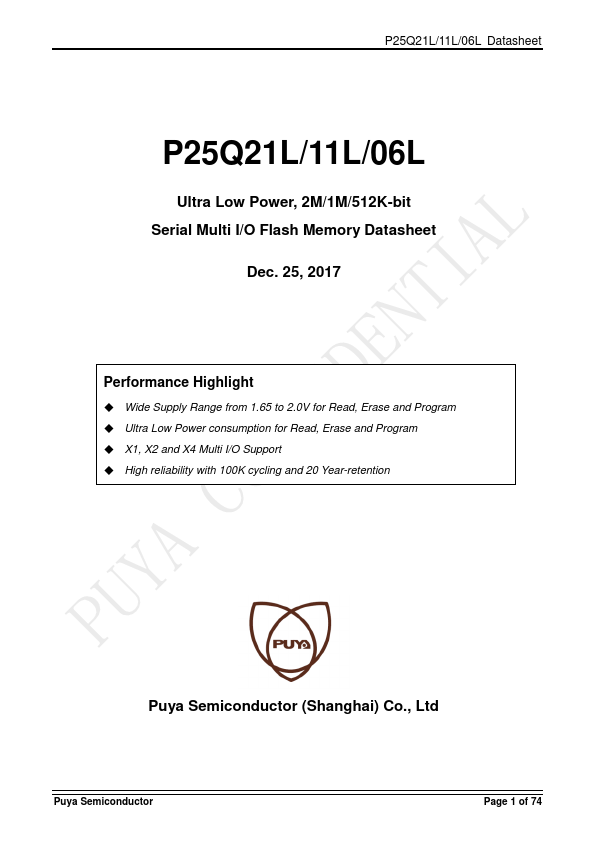

P25Q21L/11L/06L Datasheet P25Q21L/11L/06L Ultra Low Power, 2M/1M/512K-bit Serial Multi I/O Flash Memory Datasheet Dec. 25, 2017 Performance Highlight - Wide Supply Range from 1.65 to 2.0V for Read, Erase and Program - Ultra Low Power consumption for Read, Erase and Program - X1, X2 and X4 Multi I/O Support - High reliability with 100K cycling and 20 Year-retention Puya Semiconductor (Shanghai) Co., Ltd Puya Semiconductor Page 1 of 74 P25Q21L/11L/06L Datasheet 1 Overview General - Single 1.65V to 2.00V supply - Industrial Temperature Range -40C to 85C - Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3 - Single, Dual and Quad IO mode - 2M/1M/512K x 1 bit - 1M/512K/256K x 2 bits - 512K/256K/128K x 4 bits - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 256-byte Page Erase - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block...
