P25Q16SL Datasheet | Puya Semiconductor

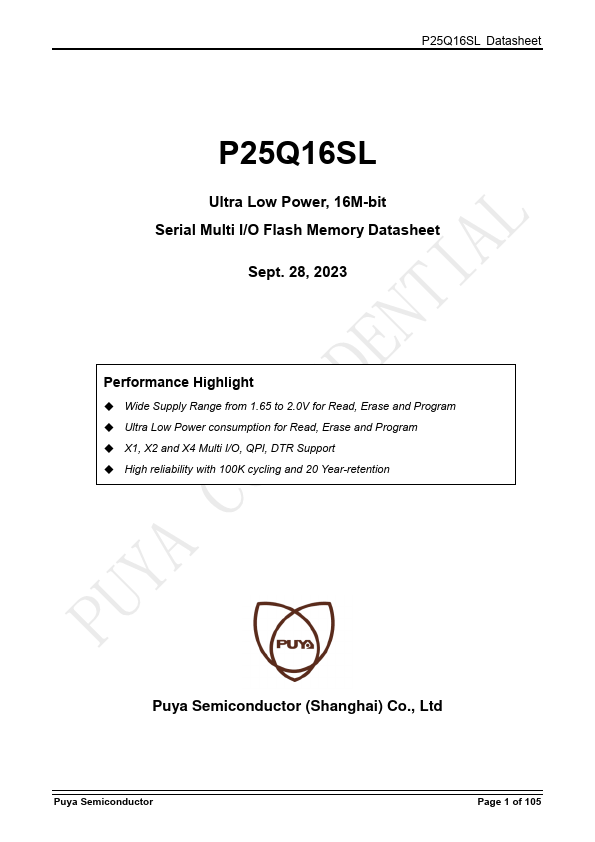

P25Q16SL Datasheet Ultra Low Power, 16M-bit Serial Multi I/O Flash Memory Datasheet Sept. 28, 2023 Performance Highlight - Wide Supply Range from 1.65 to 2.0V for Read, Erase and Program - Ultra Low Power consumption for Read, Erase and Program - X1, X2 and X4 Multi I/O, QPI, DTR Support - High reliability with 100K cycling and 20 Year-retention Puya Semiconductor (Shanghai) Co., Ltd Puya Semiconductor Page 1 of 105 1 Overview General - Single 1.65V to 2.00V supply - Industrial Temperature Range -40C to 85C - Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3 - Single, Dual, Quad SPI, QPI, DTR - Standard SPI: SCLK,CS#,SI,SO,WP#,HOLD# - Dual SPI: SCLK,CS#,IO0,IO1,WP#, HOLD# - Quad SPI: SCLK,CS#,IO0,IO1,IO2,IO3 - QPI: SCLK,CS#,IO0,IO1,IO2,IO3 - DTR: Double Transfer Rate Read - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform...
