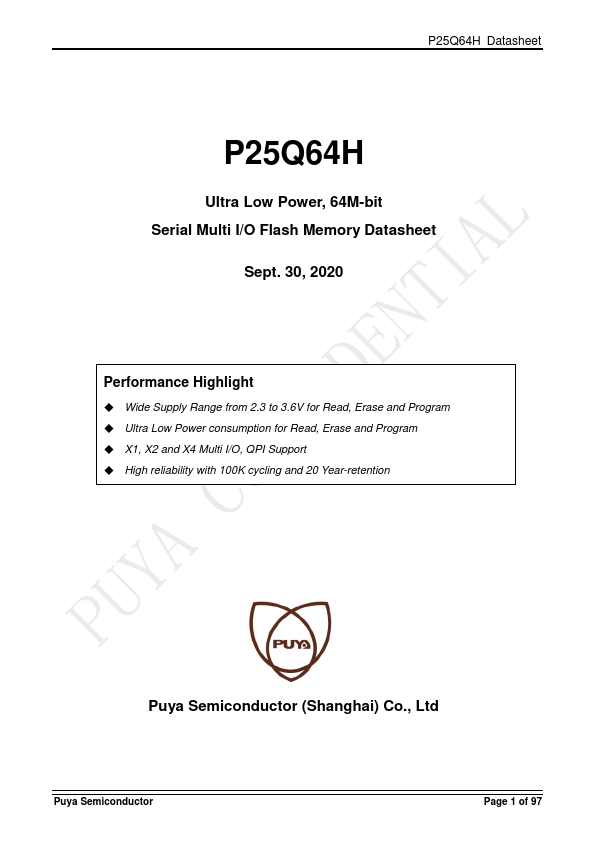

P25Q64H
P25Q64H is 64M-bit Serial Multi I/O Flash Memory manufactured by Puya Semiconductor.
P25Q64H Datasheet
Ultra Low Power, 64M-bit Serial Multi I/O Flash Memory Datasheet
Sept. 30, 2020
Performance Highlight
- Wide Supply Range from 2.3 to 3.6V for Read, Erase and Program
- Ultra Low Power consumption for Read, Erase and Program
- X1, X2 and X4 Multi I/O, QPI Support
- High reliability with 100K cycling and 20 Year-retention
Puya Semiconductor (Shanghai) Co., Ltd
Puya Semiconductor
Page 1 of 97

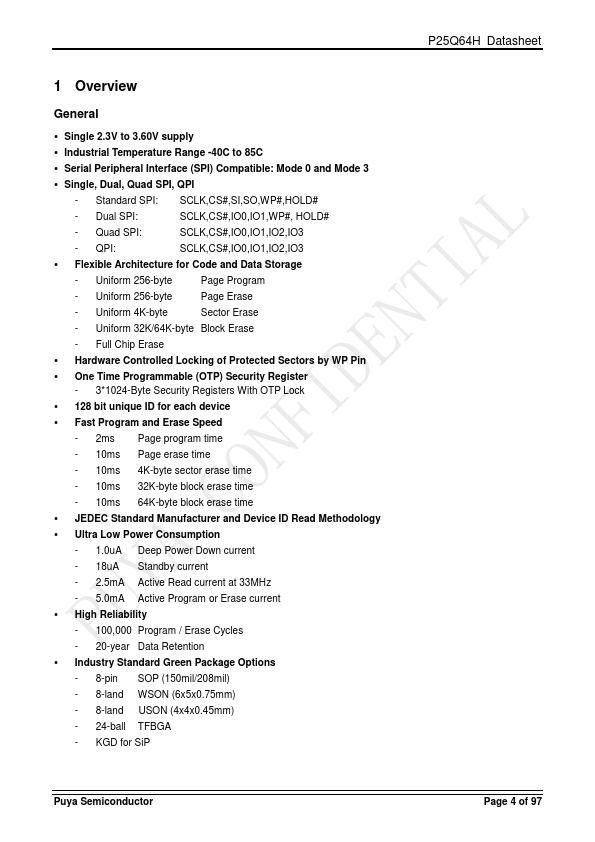

1 Overview
General
- Single 2.3V to 3.60V supply
- Industrial Temperature Range -40C to 85C
- Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3
- Single, Dual, Quad SPI, QPI
- Standard SPI: SCLK,CS#,SI,SO,WP#,HOLD#
- Dual SPI:
SCLK,CS#,IO0,IO1,WP#,...
