PY25F01GHB Datasheet | Puya Semiconductor

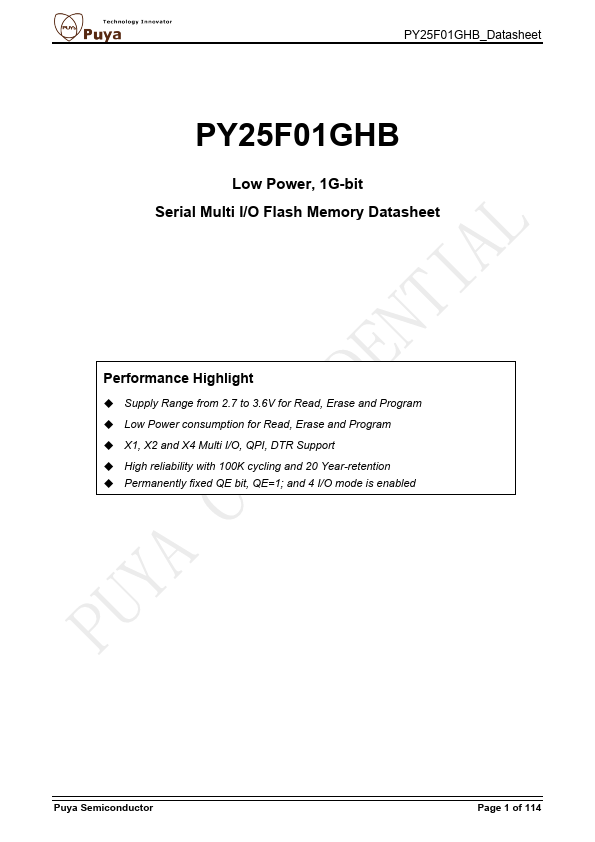

PY25F01GHB_Datasheet Low Power, 1G-bit Serial Multi I/O Flash Memory Datasheet Performance Highlight - Supply Range from 2.7 to 3.6V for Read, Erase and Program - Low Power consumption for Read, Erase and Program - X1, X2 and X4 Multi I/O, QPI, DTR Support - High reliability with 100K cycling and 20 Year-retention - Permanently fixed QE bit, QE=1; and 4 I/O mode is enabled Puya Semiconductor Page 1 of 114 PY25F01GHB_Datasheet 1 Overview General - Single 2.7 to 3.6V supply - Industrial Temperature Range -40C to 85C - Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3 - Single, Dual, Quad SPI, QPI, DTR - Standard SPI: SCLK, CS#, SI, SO, - Dual SPI: SCLK, CS#, IO0, IO1 - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3 - DTR: Double Transfer Rate Read - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform...
