PY25Q128LA Datasheet | Puya Semiconductor

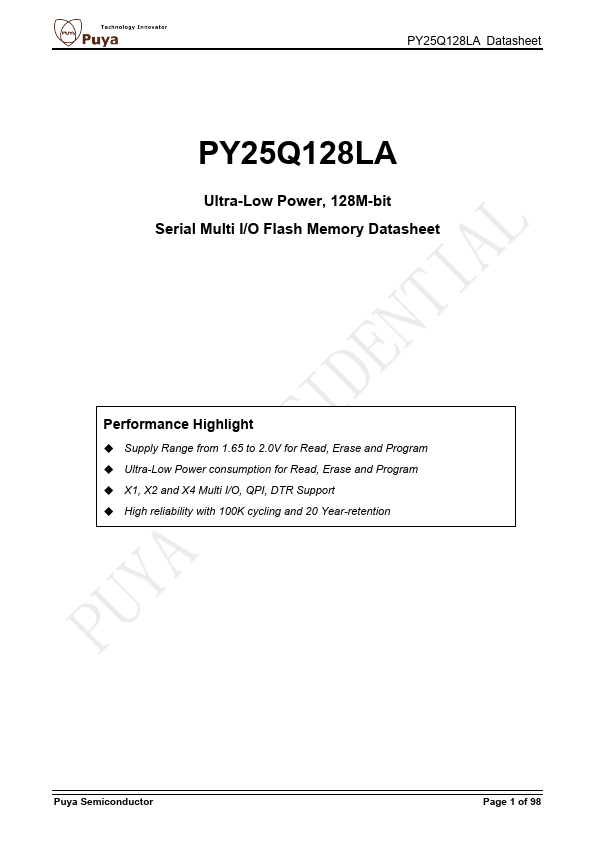

PY25Q128LA Datasheet Ultra-Low Power, 128M-bit Serial Multi I/O Flash Memory Datasheet Performance Highlight - Supply Range from 1.65 to 2.0V for Read, Erase and Program - Ultra-Low Power consumption for Read, Erase and Program - X1, X2 and X4 Multi I/O, QPI, DTR Support - High reliability with 100K cycling and 20 Year-retention Puya Semiconductor Page 1 of 98 PY25Q128LA Datasheet 1 Overview General - Single 1.65 to 2.0V supply - Industrial Temperature Range -40C to 85C & 105C - Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3 - Single, Dual, Quad SPI, QPI, DTR - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3 - DTR: Double Transfer Rate Read - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 4K-byte Sector...
