PY32F002B
PY32F002B is 32-bit Microcontroller manufactured by Puya Semiconductor.

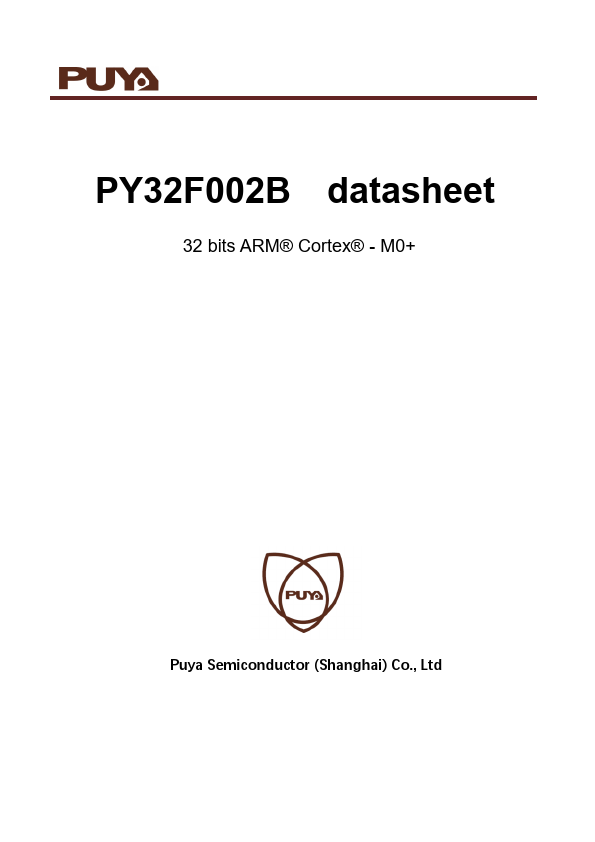

PY32F002B datasheet
32 bits ARM® Cortex®
- M0+
Puya Semiconductor (Shanghai) Co., Ltd

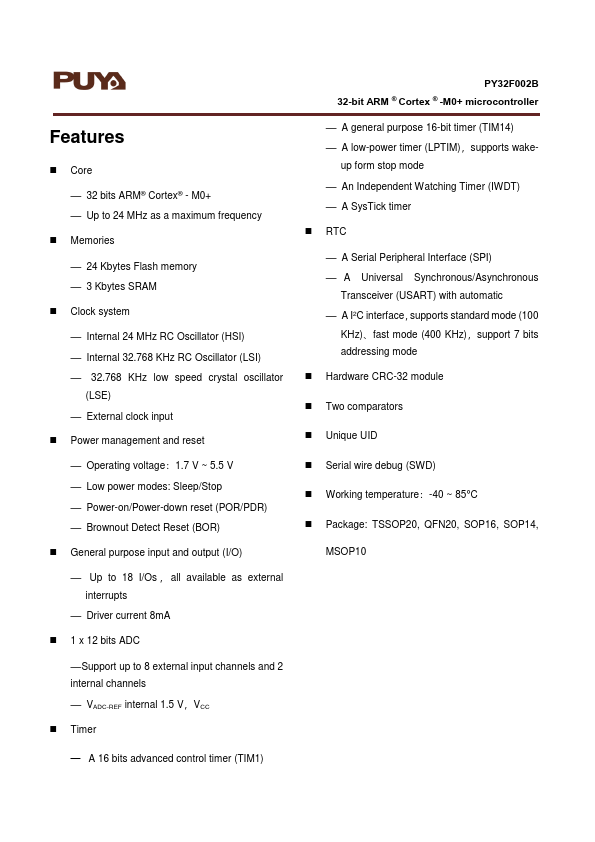

Features
- Core
- 32 bits ARM® Cortex®
- M0+
- Up to 24 MHz as a maximum frequency
- Memories
- 24 Kbytes Flash memory
- 3 Kbytes SRAM
- Clock system
- Internal 24 MHz RC Oscillator (HSI)
- Internal 32.768 KHz RC Oscillator (LSI)
- 32.768 KHz low speed crystal oscillator (LSE)
- External clock input
- Power management and reset
- Operating voltage：1.7 V ~ 5.5 V
- Low power modes: Sleep/Stop
- Power-on/Power-down reset (POR/PDR)
- Brownout Detect Reset (BOR)
- General purpose input and output (I/O)
- Up to 18 I/Os ， all available as external interrupts
- Driver current 8mA
- 1 x 12 bits ADC
- Support up to...
