QP7C245A - 2K x 8 Reprogrammable Registered PROM

Description

The QP7C245A is a high-performance, 2K x 8, electrically programmable, read-only memory packaged in a variety of packages.

The ceramic packages may be equipped with an erasure window; when exposed to UV light the PROM is erased and can then be reprogrammed.

Features

  • 5V ±10% VCC, commercial, industrial and military.
  • Windowed Packages available for reprogrammability.
  • OTP (One-Time-Programmable) Packages available.
  • Programmable asynchronous register (INITbar).
  • Programmable synchronous or asynchronous output enable.
  • High speed - 15 ns address set-up - 10 ns clock to output.
  • Slim, 300-mil, 24 pin hermetic DIP available.
  • Direct replacement for Cypress PROMs.
  • EPROM technology 100% p.

📥 Download Datasheet

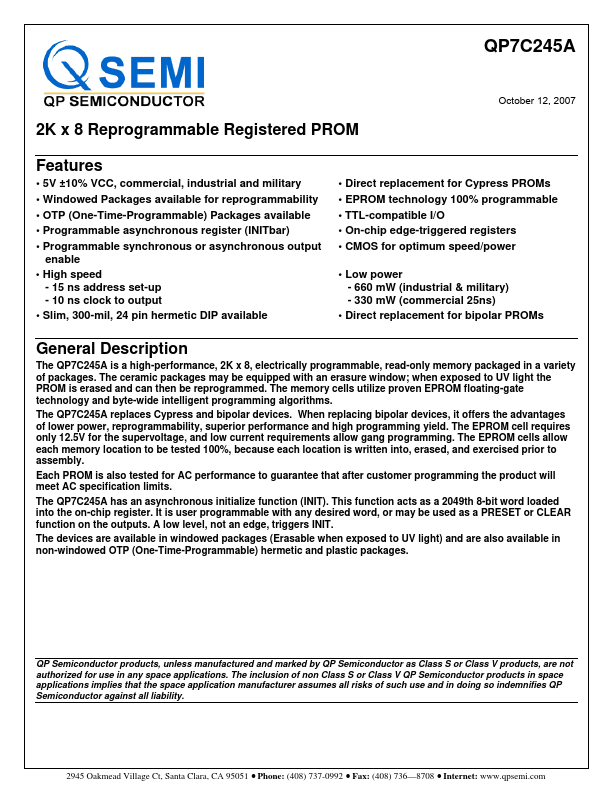

Datasheet preview – QP7C245A

Datasheet Details

Part number QP7C245A
Manufacturer QP Semiconductor
File Size 234.08 KB
Description 2K x 8 Reprogrammable Registered PROM
Datasheet download datasheet QP7C245A Datasheet

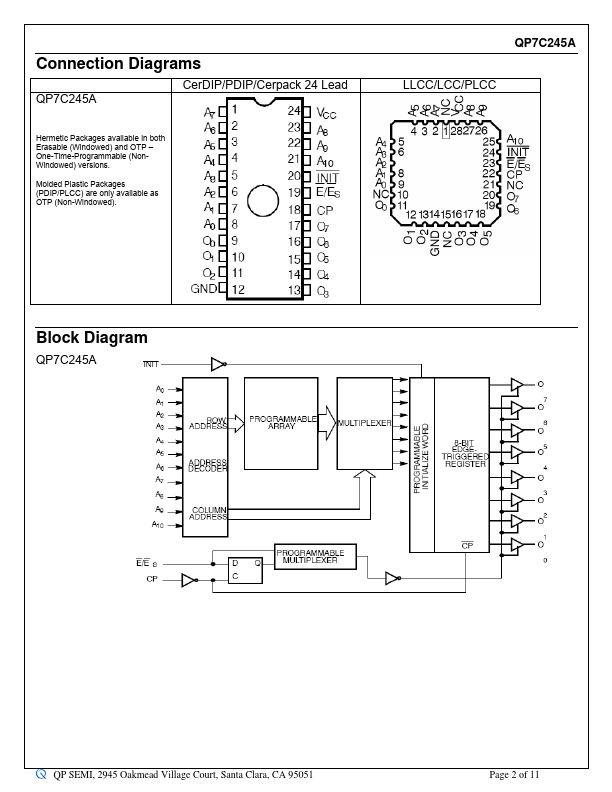

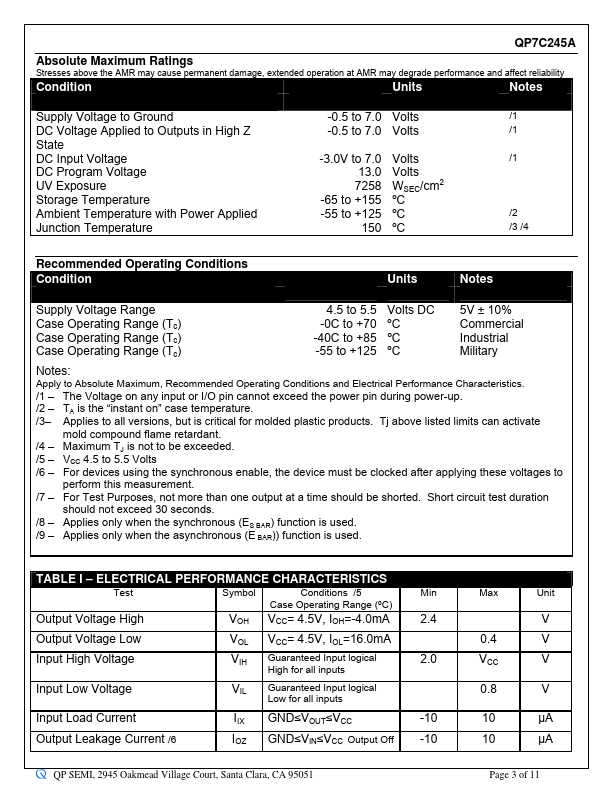

Additional preview pages of the QP7C245A datasheet.

📁 Similar Datasheet

Other Datasheets by QP Semiconductor

Full PDF Text Transcription

Click to expand full text
QP7C245A 2K x 8 Reprogrammable Registered PROM October 12, 2007 Features • 5V ±10% VCC, commercial, industrial and military • Windowed Packages available for reprogrammability • OTP (One-Time-Programmable) Packages available • Programmable asynchronous register (INITbar) • Programmable synchronous or asynchronous output enable • High speed - 15 ns address set-up - 10 ns clock to output • Slim, 300-mil, 24 pin hermetic DIP available • Direct replacement for Cypress PROMs • EPROM technology 100% programmable • TTL-compatible I/O • On-chip edge-triggered registers • CMOS for optimum speed/power • Low power - 660 mW (industrial & military) - 330 mW (commercial 25ns) • Direct replacement for bipolar PROMs General Description The QP7C245A is a high-performance, 2K x 8, electrically programm
