ACT72350
DESCRIPTION

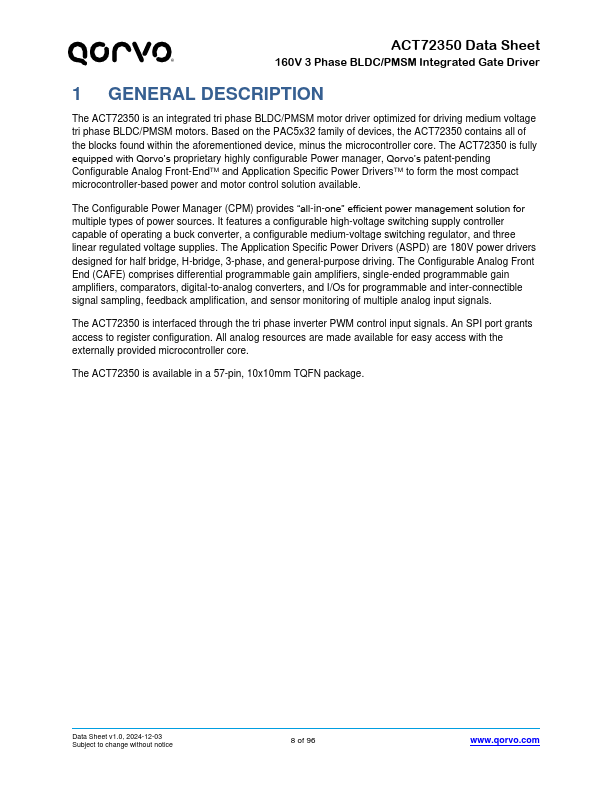

The ACT72350 is an integrated tri phase BLDC/PMSM motor driver optimized for driving medium voltage tri phase BLDC/PMSM motors. Based on the PAC5x32 family of devices, the ACT72350 contains all of the blocks found within the aforementioned device, minus the microcontroller core. The ACT72350 is fully equipped with Qorvo’s proprietary highly configurable Power manager, Qorvo’s patent-pending Configurable Analog Front-End TM and Application Specific Power Drivers TM to form the most pact microcontroller-based power and motor control solution available.
The Configurable Power Manager (CPM) provides “all-in-one” efficient power management solution for multiple types of power sources. It features a configurable high-voltage switching supply controller capable of operating a buck converter, a configurable medium-voltage switching regulator, and three linear regulated voltage supplies. The Application Specific Power Drivers (ASPD) are 180V power drivers designed for half bridge,...
