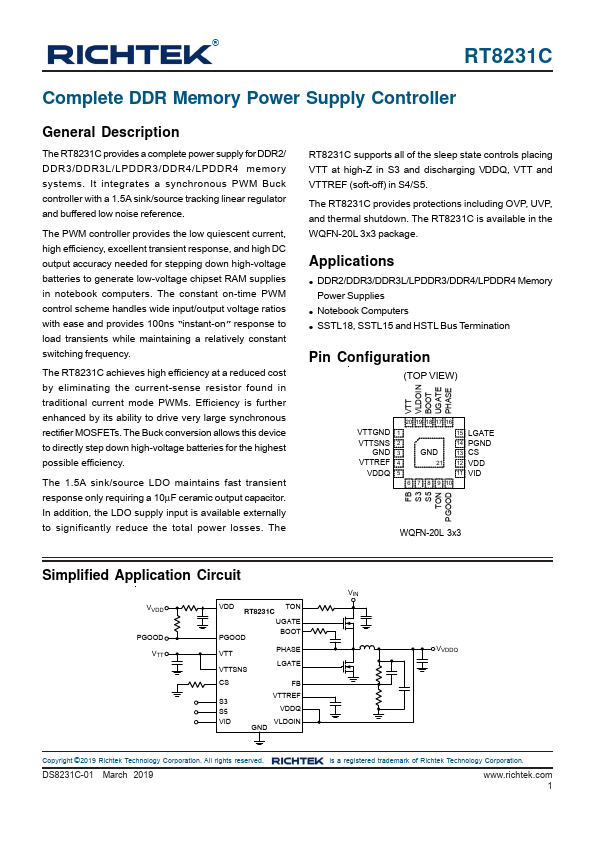

® RT8231C plete DDR Memory Power Supply Controller General Description The RT8231C provides a plete power supply for DDR2/ DDR3/DDR3L/LPDDR3/DDR4/LPDDR4 memory systems. It integrates a synchronous PWM Buck controller with a 1.5A sink/source tracking linear regulator and buffered low noise reference. The PWM controller provides the low quiescent current, high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high-voltage batteries to generate low-voltage chipset RAM supplies in notebook puters. The constant on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns “instant-on” response to load transients while maintaining a relatively constant switching frequency. The RT8231C achieves high efficiency at a reduced cost by eliminating the current-sense resistor found in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs. The Buck conversion allows this device to directly step down high-voltage batteries for the highest possible efficiency. The 1.5A sink/source LDO maintains fast transient response only requiring a 10μF ceramic output capacitor. In addition, the LDO supply input is available externally to significantly reduce the total power losses. The RT8231C supports all of the sleep state controls placing VTT at high-Z in S3 and discharging VDDQ, VTT and VTTREF (soft-off) in S4/S5. The RT8231C provides protections including OVP, UVP, and thermal shutdown. The RT8231C is available in the WQFN-20L 3x3 package. Applications - DDR2/DDR3/DDR3L/LPDDR3/DDR4/LPDDR4 Memory Power Supplies - Notebook puters - SSTL18, SSTL15 and HSTL Bus Termination Pin Configuration (TOP VIEW) VTT VLDOIN BOOT UGATE PHASE VTTGND VTTSNS GND VTTREF VDDQ 20 19 18 17 16 15 LGATE 14 PGND 13 CS 21 12 VDD 11 VID 6 7 8 9 10 FB S3 S5 TON PGOOD WQFN-20L 3x3 Simplified Application Circuit VVDD PGOOD...
