RT9261A - VFM Step-up DC/DC Converter

This page provides the datasheet information for the RT9261A, a member of the RT9261 VFM Step-up DC/DC Converter family.

Datasheet Summary

Description

The RT9261 Series are VFM Step-up DC/DC ICs with ultra low supply current by CMOS process and suitable for use with battery-powered instruments.

Features

Minimal Number of External Components ( Only an Inductor, a Diode, and a Capacitor) Ultra Low Input Current ( 5µA at Switch Off) ± 2% High Output Voltage Accuracy Low Ripple and Low Noise Low Start-up Voltage, 0.85V at 1mA 75% Efficiency with Low Cost Inductor +50 ppm/ °C Low Temperature-Drift SOT-89 and SOT-25 Small Packages.

Datasheet Details

Part number	RT9261A
Manufacturer	Richtek
File Size	274.31 KB
Description	VFM Step-up DC/DC Converter
Datasheet	RT9261A Datasheet

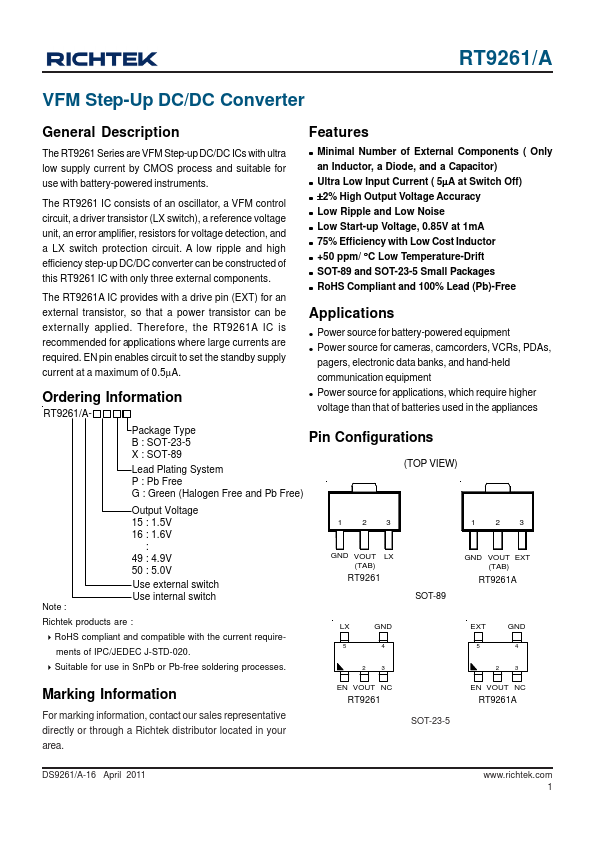

Additional preview pages of the RT9261A datasheet.

📁 Similar Datasheet

RT9201 - High Efficiency PWM Step-Down DC-DC Converter (Richtek Technology)

RT9205 - Dual Regulators - Synchronous Buck PWM DC-DC and Linear Controller (Richiek)

RT9205A - Dual Regulators - Synchronous Buck PWM DC-DC and Linear Controller (Richiek)

RT9206 - Synchronous Buck (Richtek Technology Corporation)

RT9214 - 5V/12V Synchronous Buck PWM DC-DC Controller (Richtek Technology)

RT922 - high output current dual operational amplifier (STMicroelectronics)

RT9221 - PROGRAMMABLE SYNCHRONOUS PWM BUCK CONVERTER (Richtek Technology)

RT9223 - 5 BIT PROGRAMMABLE SYNCHRONOUS PWM BUCK CONVERTER CONTROLLER (Richtek Technology)

RT9224 - 5-Bit Programmable Synchronous PWM Buck Converter Controller and Output Voltage Monitor (Richtek Technology)

RT9224C - VRM 9.0 Synchronous PWM Buck Converter Controller and Output Voltage Monitor (Richtek Technology)

Full PDF Text Transcription

Click to expand full text

Preliminary RT9261/A VFM Step-up DC/DC Converter General Description The RT9261 Series are VFM Step-up DC/DC ICs with ultra low supply current by CMOS process and suitable for use with battery-powered instruments. The RT9261 IC consists of an oscillator, a VFM control circuit, a driver transistor (LX switch), a reference voltage unit, an error amplifier, resistors for voltage detection, and a LX switch protection circuit. A low ripple and high efficiency step-up DC/DC converter can be constructed of this RT9261 IC with only three external components. The RT9261A IC provides with a drive pin (EXT) for an external transistor, so that a power transistor can be externally applied. Therefore, the RT9261A IC is recommended for applications where large currents are required.
