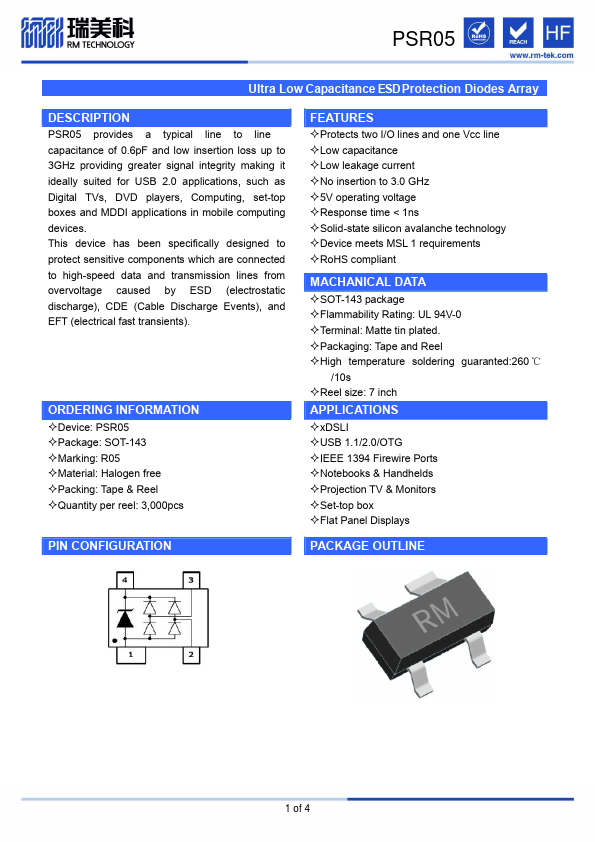

PSR05
PSR05 is Ultra Low Capacitance ESD Protection Diodes Array manufactured by RM TECHNOLOGY.
Ultra Low Capacitance ESD Protection Diodes Array
DESCRIPTION
PSR05 provides a typical line to line capacitance of 0.6p F and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for USB 2.0 applications, such as Digital TVs, DVD players, puting, set-top boxes and MDDI applications in mobile puting devices. This device has been specifically designed to protect sensitive ponents which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
ORDERING INFORMATION
- Device: PSR05
- Package: SOT-143
- Marking: R05
- Material: Halogen free
- Packing: Tape & Reel
- Quantity per reel: 3,000pcs
PIN CONFIGURATION
Features
- Protects two I/O lines and one Vcc line
- Low capacitance
- Low leakage current
- No insertion to 3.0 GHz
- 5V operating voltage
- Response time < 1ns
- Solid-state silicon avalanche technology
- Device meets MSL 1 requirements
- Ro HS pliant
MACHANICAL DATA
- SOT-143 package
- Flammability Rating: UL 94V-0
- Terminal: Matte tin plated.
- Packaging: Tape and Reel
- High temperature soldering guaranted:260 ℃
/10s
- Reel size: 7 inch

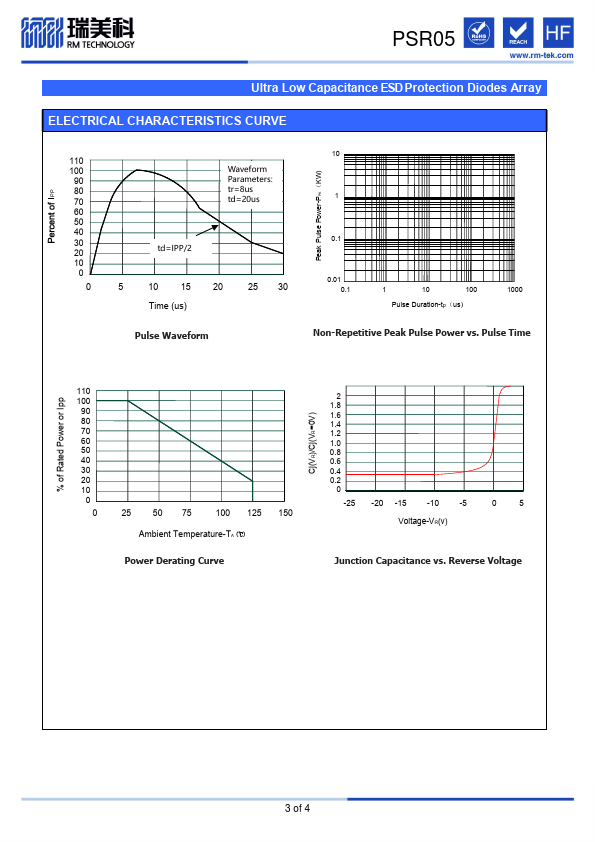

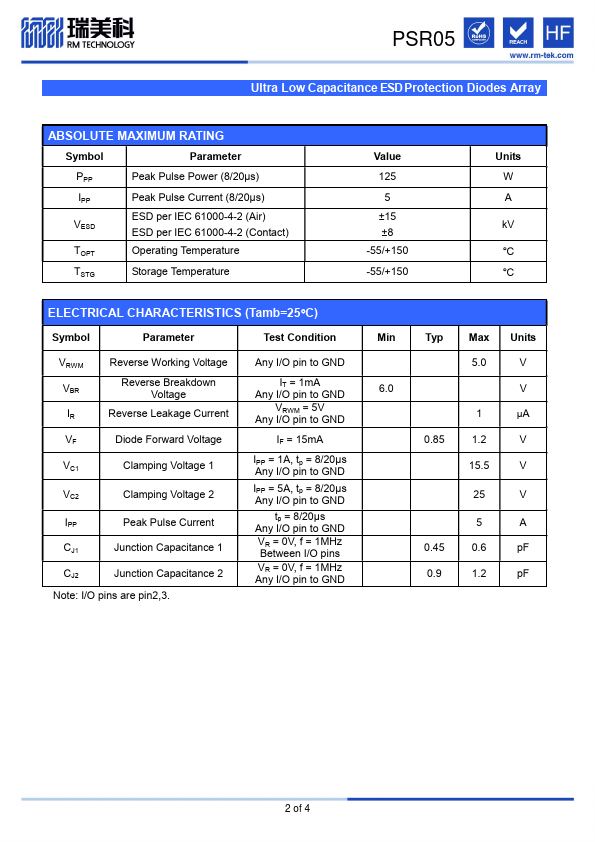

APPLICATIONS...
