BD00GA3MEFJ-ME2 - LDO Regulator

General Description

BDxxGA3MEFJ-M BDxxGA3VEFJ-M is a LDO regulator with output current 0.3A.

The output accuracy is ±1% of output voltage.

With external resistance, it is available to set the output voltage at random (from 1.5V to 13.0V).It has package type: HTSOP-J8.

Key Features

  • br>.
  • High accuracy reference voltage circuit.
  • Built-in Over Current Protection circuit (OCP).
  • Built-in Thermal Shut Down circuit (TSD).
  • With shut down switch.
  • AEC-Q100 Qualified.
  • Key Specifications.
  • Input power supply voltage range: 4.5V to 14.0V.
  • Output voltage range(Variable type): 1.5V to 13.0V.
  • Output voltage(Fixed type): 1.5V/1.8V/2.5V/3.0V/3.3V 5.0V/6.0V/7.0V/8.0V/9.0V/10V/12V.
  • Output current: 0.3A (Max. ).
  • Shutdown current: 0μA(Typ.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD0205F5050AHF Ultra Low Profile 1608 Balun 50 ohm to 50 ohm Balanced Anaren Microwave
BD034 Silicon PNP transistor BLUE ROCKET ELECTRONICS
BD034 TRANSISTOR Jiangsu Changjiang Electronics
BD034 PNP General Purpose Transistor SeCoS
BD034L Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by ROHM

Part Number Description
BD00GA3VEFJ-ME2 LDO Regulator
BD00GA3WEFJ 300mA Secondary Variable Output LDO Regulators
BD00GA3WNUX LDO Regulators
BD00GA5MEFJ-ME2 LDO Regulator
BD00GA5VEFJ-ME2 LDO Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

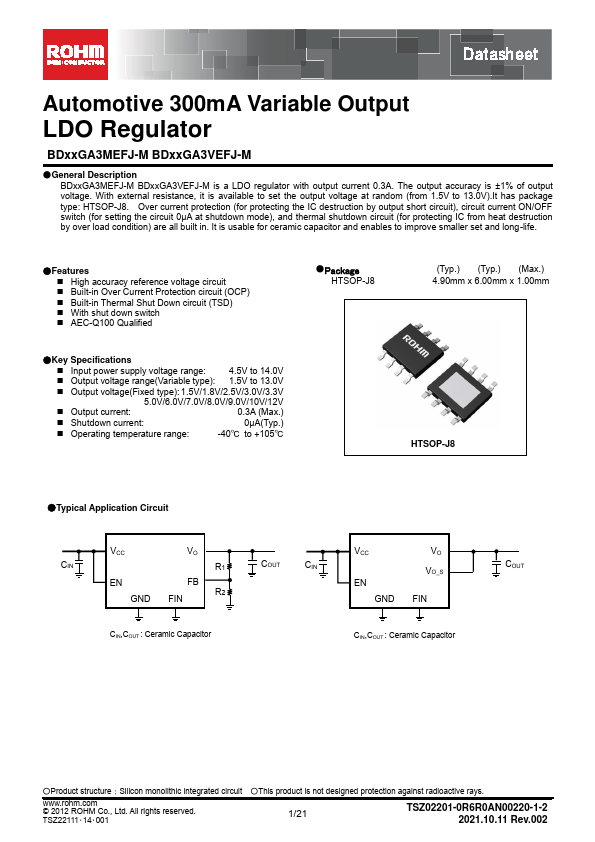

Datasheet Automotive 300mA Variable Output LDO Regulator BDxxGA3MEFJ-M BDxxGA3VEFJ-M ●General Description BDxxGA3MEFJ-M BDxxGA3VEFJ-M is a LDO regulator with output current 0.3A. The output accuracy is ±1% of output voltage. With external resistance, it is available to set the output voltage at random (from 1.5V to 13.0V).It has package type: HTSOP-J8. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
