BD41030HFN-C - LIN Transceiver

Download the BD41030HFN-C datasheet PDF. This datasheet also covers the BD41030FJ-C variant, as both devices belong to the same lin transceiver family and are provided as variant models within a single manufacturer datasheet.

General Description

Network) master and slave protocol.

consumption in sleep mode.

Key Features

  • Compliant with LIN2.0,LIN2.1,LIN2.2,LIN2.2A.
  • AEC-Q100 Qualified(Note 1).
  • Absolute maximum ratings of LIN pin is -27V to+40V.
  • Max transmission rate 20kbps.
  • Low Electro Magnetic Emission (EME).
  • High Electro Magnetic Immunity (EMI).
  • High impedance at power off for bus.
  • Interface (RXD/TXD) with protocol layer corresponds to 3.3V/5.0V logic.
  • Built-in terminator for LIN slave.
  • Standby power consumption in sleep mode.
  • Transmit data(TXD) dominant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BD41030FJ-C-ROHM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BD410 NPN Epitaxial Silicon Power Transistor Continental
BD410 NPN EPITAXIAL SILICON POWER TRANSISTOR Comset Semiconductors
BD411 Medium Power Linear and Switching Applications Fairchild Semiconductor
BD41931 SINGLE PHASE MOULDED BRIDGES 0.8 AMP TO 1.5 AMP ETC
BD40A02 100 Base-T Quad port transformer Module TNK

Other Datasheets by ROHM

Part Number Description
BD41030FJ-C LIN Transceiver
BD4142HFV CMOS Voltage Detector
BD4153EFV Power switch for ExpressCard
BD4153FV Power switch for ExpressCard
BD4154FV Power switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

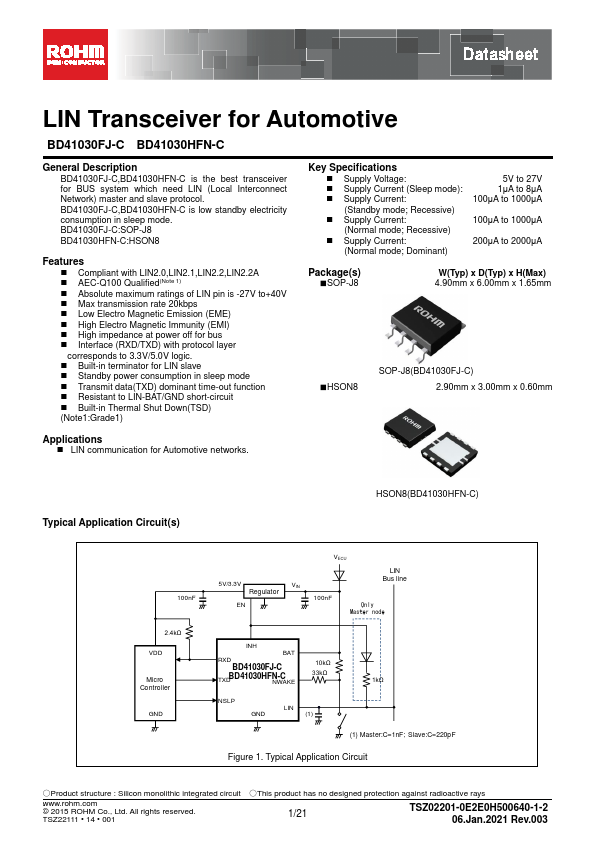

Datasheet LIN Transceiver for Automotive BD41030FJ-C BD41030HFN-C General Description BD41030FJ-C,BD41030HFN-C is the best transceiver for BUS system which need LIN (Local Interconnect Network) master and slave protocol. BD41030FJ-C,BD41030HFN-C is low standby electricity consumption in sleep mode. BD41030FJ-C:SOP-J8 BD41030HFN-C:HSON8 Features  Compliant with LIN2.0,LIN2.1,LIN2.2,LIN2.2A  AEC-Q100 Qualified(Note 1)  Absolute maximum ratings of LIN pin is -27V to+40V  Max transmission rate 20kbps  Low Electro Magnetic Emission (EME)  High Electro Magnetic Immunity (EMI)  High impedance at power off for bus  Interface (RXD/TXD) with protocol layer corresponds to 3.3V/5.0V logic.
