BD64950EFJ - 40V Withstand Voltage 3.5A DC Brush Motor Driver

Description

BD64950EFJ is a built in 1 channel H-bridge motor driver for DC brush motors.

This driver can facilitate low power consumption by direct PWM control or PWM constant current control.

There are built-in protection circuits in this IC, which contributes to set high reliability.

Features

  • Single Power Supply Input (Rated Voltage of 40 V).
  • Rated Output Current: 3.5 A.
  • Rated Output Current (Peak): 6.0 A.
  • Low ON Resistance DMOS Output.
  • Forward, Reverse, Brake, Open Function.
  • Direct PWM Control.
  • PWM Constant Current Control (Current Limit Function).
  • Built-in Spike Noise Cancel Function (External Noise Filter is Unnecessary).
  • Driver for 1 DC Brush Motor.
  • Built-in Logic Input Pull-Down Resistor.
  • Cross Conduction Prevention Circuit.

📥 Download Datasheet

Datasheet preview – BD64950EFJ

Datasheet Details

Part number BD64950EFJ
Manufacturer ROHM
File Size 1.01 MB
Description 40V Withstand Voltage 3.5A DC Brush Motor Driver
Datasheet download datasheet BD64950EFJ Datasheet

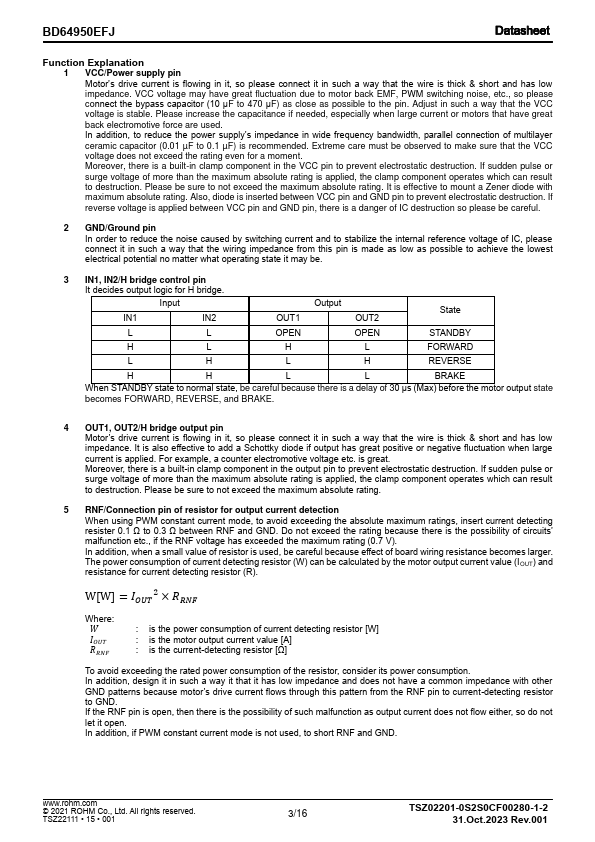

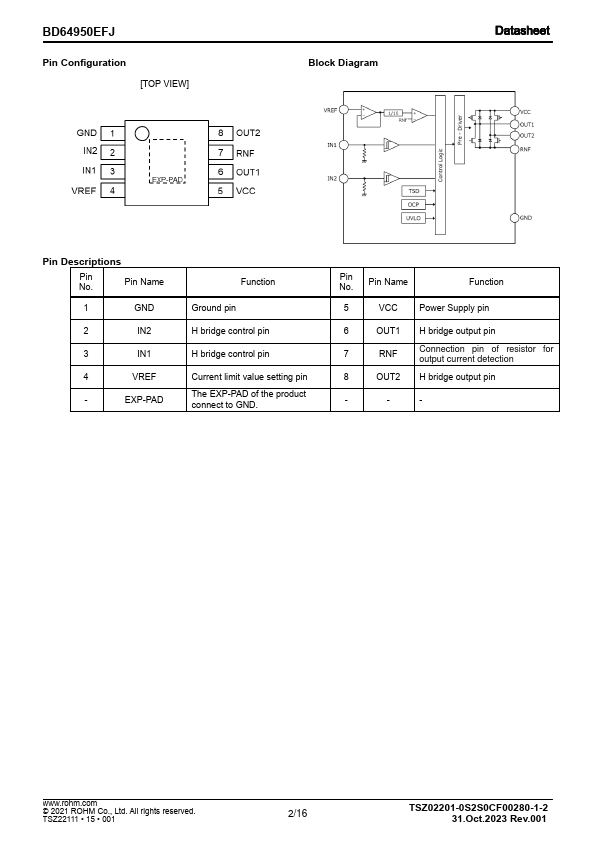

Additional preview pages of the BD64950EFJ datasheet.

📁 Similar Datasheet

  • BD649 - NPN SILICON POWER DARLINGTONS (Bourns Electronic Solutions)
  • BD649 - SILICON POWER TRANSISTOR (SavantIC)
  • BD649 - SILICON DARLINGTON POWER TRANSISTORS (Comset Semiconductors)
  • BD649 - NPN Transistor (INCHANGE)
  • BD649F - NPN Transistor (INCHANGE)
  • BD640CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Pan Jit International)
  • BD640CT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Pan Jit International)
  • BD643 - SILICON POWER TRANSISTOR (SavantIC)
  • BD643 - SILICON DARLINGTON POWER TRANSISTORS (Comset Semiconductors)
  • BD643 - NPN Transistor (INCHANGE)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
Datasheet 40 V Withstand Voltage 3.5 A (Peak 6 A) DC Brush Motor Driver with Current Limit BD64950EFJ General Description BD64950EFJ is a built in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM control or PWM constant current control. There are built-in protection circuits in this IC, which contributes to set high reliability. Features ◼ Single Power Supply Input (Rated Voltage of 40 V) ◼ Rated Output Current: 3.5 A ◼ Rated Output Current (Peak): 6.
