BD8LZ700EFV-C - 8ch Low-side switch

Datasheet Summary

Description

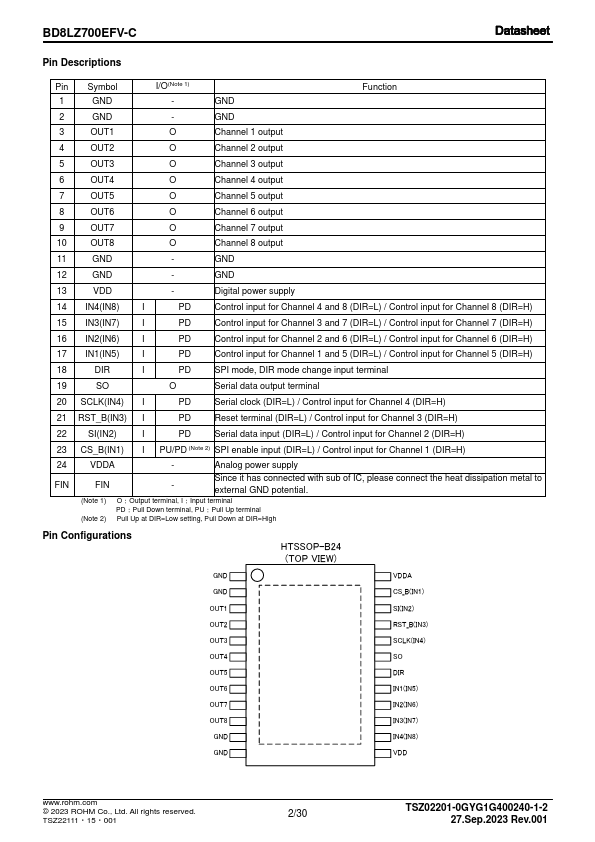

Pin Symbol 1 GND 2 GND 3 OUT1 4 OUT2 5 OUT3 6 OUT4 7 OUT5 I/O(Note 1) O O O O O GND GND Channel 1 output Channel 2 output Channel 3 output Channel 4 output Channel 5 output Function 8 OUT6 O Channel 6 output 9 OUT7 O Channel 7 output 10 OUT8 O Channel 8 output 11 GND

Features

  • Monolithic power IC that has a built-in control part (CMOS) and a power MOS FET on 1chip.
  • 8ch Low-side switch for driving resistive, inductive load.
  • 16bit Serial peripheral interface(SPI) for diagnostics and control.
  • Built-in Open Load Detection circuit in output-off state.
  • Built-in Over Current Protection circuit (OCP).
  • Built-in Active Clamp circuit.
  • Built-in Thermal shutdown circuit (TSD）.
  • Low On resistance of RON=700mΩ(VIN=5V, Tj=25°C, Io=0.2A, Typ).

📥 Download Datasheet

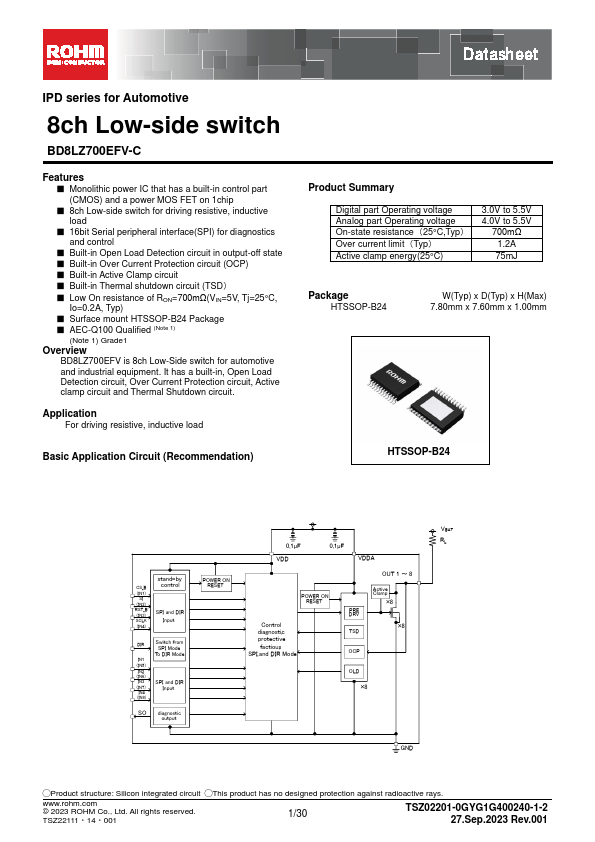

Datasheet preview – BD8LZ700EFV-C

Datasheet Details

Part number BD8LZ700EFV-C
Manufacturer ROHM
File Size 1.23 MB
Description 8ch Low-side switch
Datasheet download datasheet BD8LZ700EFV-C Datasheet
Additional preview pages of the BD8LZ700EFV-C datasheet.

📁 Similar Datasheet

  • BD800 - PNP Transistor (INCHANGE)
  • BD801 - Plastic High Power Silicon NPN Transistor (Motorola Inc)
  • BD801 - NPN Transistor (INCHANGE)
  • BD802 - Plastic High Power Silicon PNP Transistor (Motorola Inc)
  • BD802 - PNP Transistor (INCHANGE)
  • BD807 - NPN Transistor (INCHANGE)
  • BD808 - Plastic High Power Silicon PNP Transistor (Motorola Inc)
  • BD808 - PNP Transistor (INCHANGE)
  • BD809 - Plastic High Power Silicon Transistors (ON Semiconductor)
  • BD809 - NPN Transistor (INCHANGE)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
Datasheet IPD series for Automotive 8ch Low-side switch BD8LZ700EFV-C Features ■ Monolithic power IC that has a built-in control part (CMOS) and a power MOS FET on 1chip ■ 8ch Low-side switch for driving resistive, inductive load ■ 16bit Serial peripheral interface(SPI) for diagnostics and control ■ Built-in Open Load Detection circuit in output-off state ■ Built-in Over Current Protection circuit (OCP) ■ Built-in Active Clamp circuit ■ Built-in Thermal shutdown circuit (TSD） ■ Low On resistance of RON=700mΩ(VIN=5V, Tj=25°C, Io=0.2A, Typ) ■ Surface mount HTSSOP-B24 Package ■ AEC-Q100 Qualified (Note 1) (Note 1) Grade1 Overview BD8LZ700EFV is 8ch Low-Side switch for automotive and industrial equipment.
