BH1726NUC - Digital 16bit Serial Output Type Ambient Light Sensor IC

Product Overview

ROHM

Datasheet Details

Part number	BH1726NUC
Manufacturer	ROHM
File Size	0.97 MB
Description	Digital 16bit Serial Output Type Ambient Light Sensor IC
Datasheet	BH1726NUC Datasheet

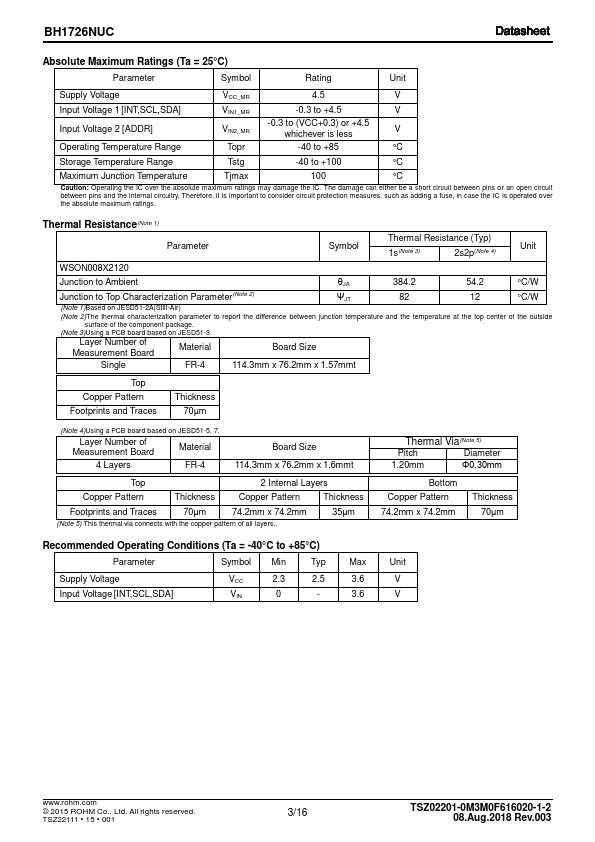

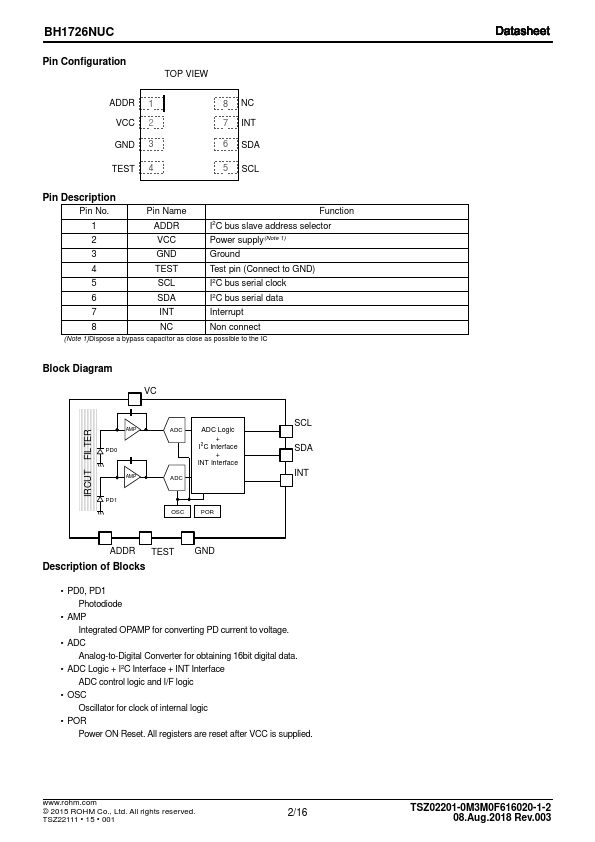

Additional preview pages of the BH1726NUC datasheet.

Product details

Description

BH1726NUC is a digital Ambient Light Sensor IC with I2C bus interface. VCC Voltage Range: 2.3V to 3.6V Detection Range: 30klx (Typ) Current Consumption: 75μA (Typ) Power Down Current: 0.8μA (Typ) Operating Temperature Range: -40°C to +85°C

Features

Built-in Ircut filter.
2 outputs with different spectral response.
Correspond to dark window because of high sensitivity.
Rejecting 50Hz/60Hz light noise.
I2C bus interface (f/s mode support).
It is possible to select 2 type of I2C bus slave address.
Correspond to 1.8V logic interface.
Resolution 0.0003lx/count (Typ) (In highest gain and longest measurement.
