BSS670AHZG

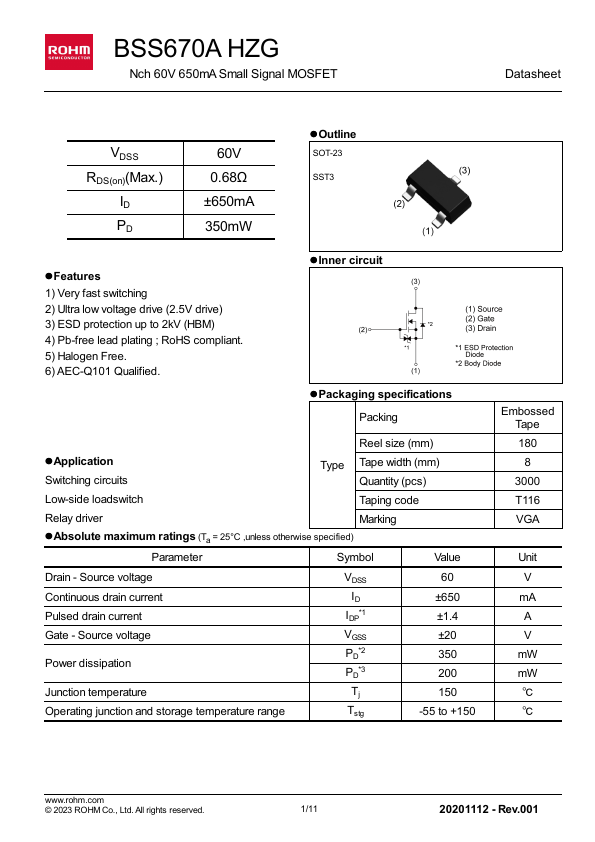

BSS670AHZG is Nch 60V 650mA Small Signal MOSFET manufactured by ROHM.
BSS670A HZG
Nch 60V 650m A Small Signal MOSFET
VDSS RDS(on)(Max.)
ID PD
60V 0.68Ω ±650m A 350m W l Outline
SOT-23 SST3 l Features
1) Very fast switching 2) Ultra low voltage drive (2.5V drive) 3) ESD protection up to 2k V (HBM) 4) Pb-free lead plating ; Ro HS pliant. 5) Halogen Free. 6) AEC-Q101 Qualified. l Inner circuit l Packaging specifications Packing
Reel size (mm) l Application Switching circuits
Type Tape width (mm) Quantity (pcs)
Low-side loadswitch
Taping code
Relay driver
Marking l Absolute maximum ratings (Ta = 25°C ,unless otherwise specified)
Parameter
Symbol
Value
Drain
- Source voltage Continuous drain current Pulsed drain current Gate
- Source voltage
Power dissipation
Junction temperature Operating junction and storage temperature range
VDSS ID IDP- 1
VGSS PD- 2 PD- 3 Tj Tstg
60 ±650 ±1.4 ±20 350 200 150 -55 to +150
Embossed Tape 180 8 3000 T116 VGA
Unit V m A A V m W m W
℃ ℃
.rohm.
© 2023 ROHM Co., Ltd. All rights reserved.
1/11
- Rev.001

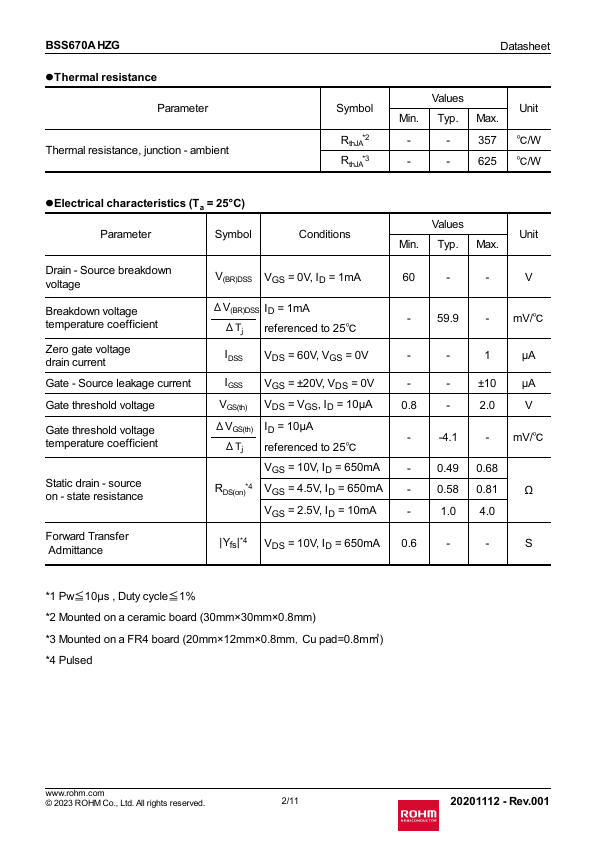

BSS670A HZG l Thermal resistance
Parameter
Thermal resistance, junction
- ambient
Symbol
Rth JA- 2 Rth JA- 3
Values Unit
Min. Typ....
