BV2HBC20EUV-C Datasheet | ROHM

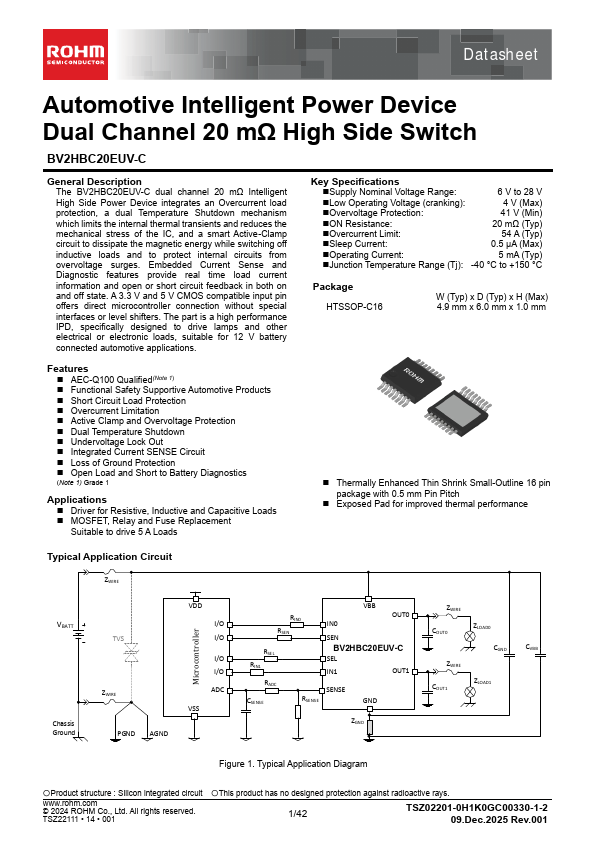

Automotive Intelligent Power Device Dual Channel 20 mΩ High Side Switch General Description The BV2HBC20EUV-C dual channel 20 mΩ Intelligent High Side Power Device integrates an Overcurrent load protection, a dual Temperature Shutdown mechanism which limits the internal thermal transients and reduces the mechanical stress of the IC, and a smart Active-Clamp circuit to dissipate the magnetic energy while switching off inductive loads and to protect internal circuits from overvoltage surges. Embedded Current Sense and Diagnostic Features provide real time load current information and open or short circuit feedback in both on and off state. A 3.3 V and 5 V CMOS...
