MCR25L - General Purpose Chip Resistors

This page provides the datasheet information for the MCR25L, a member of the MCR10L General Purpose Chip Resistors family.

Datasheet Summary

Description

Part No.

Part No.

Features

  • 1) Realized downsizing and high rated power by changing the design of the resistive element. 2) Very-low ohmic resistance from 47m Ohm is in line up by thick-film resistive element. 3) High reliability chip resistor employing metal glaze as resistive element 4) ROHM resistors have obtained ISO9001 / IATF1649 certification. 5) Corresponds to AEC-Q200.
  • Products list Part No. Size Rated power (mm) (inch) (W) Rated ambient tem perature (°C) Rated term inal tem perature (°C) MCR10L 20.

📥 Download Datasheet

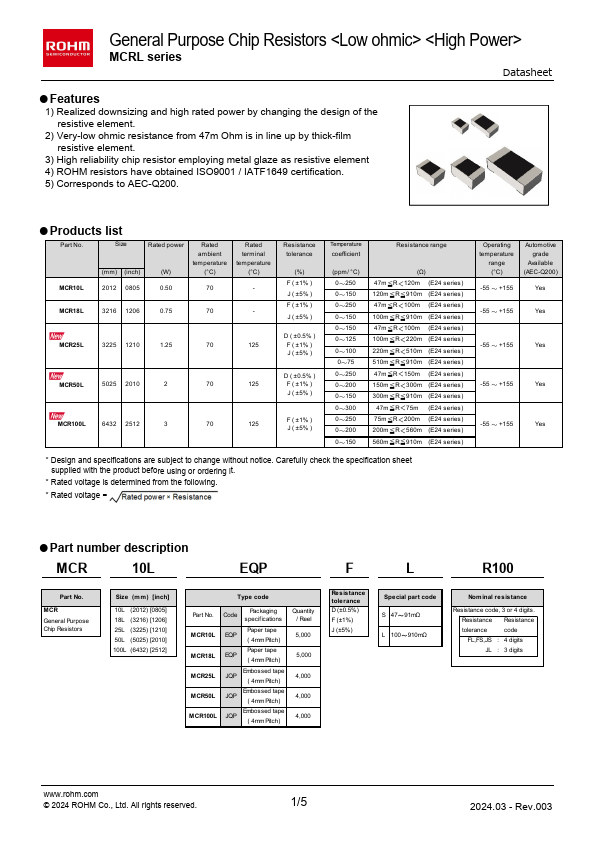

Datasheet preview – MCR25L

Datasheet Details

Part number MCR25L
Manufacturer ROHM
File Size 1.03 MB
Description General Purpose Chip Resistors
Datasheet download datasheet MCR25L Datasheet

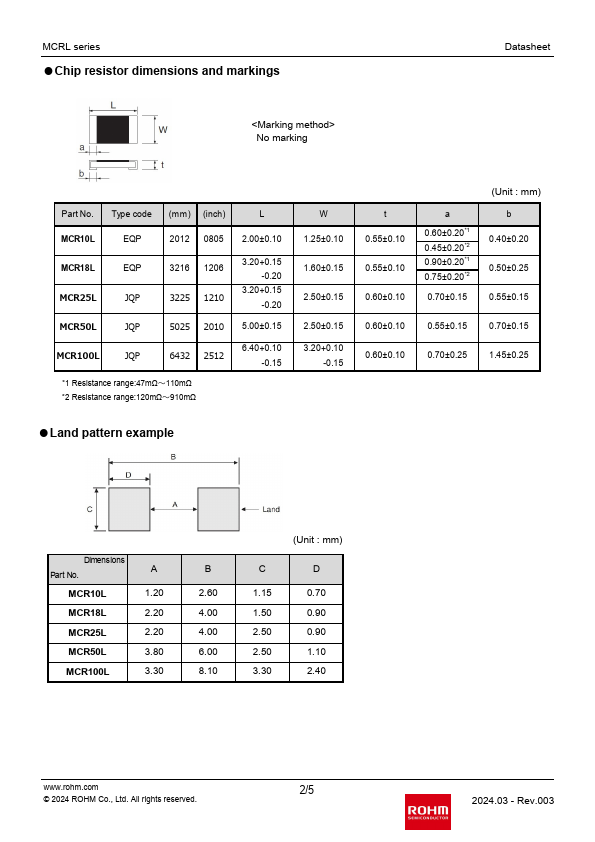

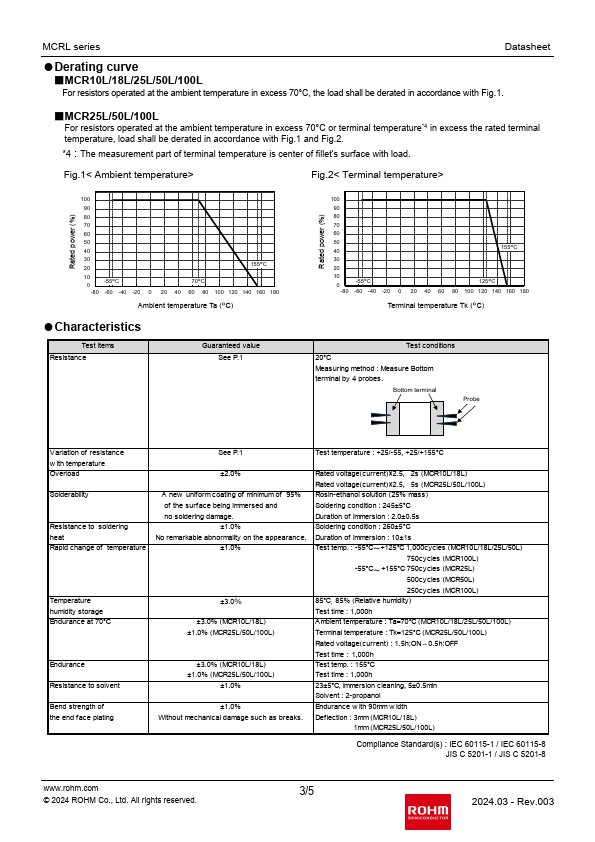

Additional preview pages of the MCR25L datasheet.

📁 Similar Datasheet

  • MCR25 - Silicon Controlled Rectifiers (Motorola)
  • MCR25D - SCR (HAOPIN MICROELECTRONICS)
  • MCR25D - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • MCR25D - Silicon Controlled Rectifiers (Motorola)
  • MCR25D - Silicon Controlled Rectifiers (ON Semiconductor)
  • MCR25DG - Silicon Controlled Rectifiers (Littelfuse)
  • MCR25M - SCR (HAOPIN MICROELECTRONICS)
  • MCR25M - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • MCR25M - Silicon Controlled Rectifiers (Motorola)
  • MCR25M - Silicon Controlled Rectifiers (ON Semiconductor)
Other Datasheets by ROHM
  • MCR25 - Thick Film Chip Resistors
  • MCR004 - Thick Film Chip Resistors
  • MCR004E - General purpose chip resistors
  • MCR006 - Thick film chip resistors
  • MCR01 - Thick Film Chip Resistors
  • MCR03 - Thick Film Chip Resistors
  • MCR10 - Thick Film Chip Resistors
  • MCR100 - Thick Film Chip Resistors

Full PDF Text Transcription

Click to expand full text
General Purpose Chip Resistors MCRL series Datasheet ●Features 1) Realized downsizing and high rated power by changing the design of the resistive element. 2) Very-low ohmic resistance from 47m Ohm is in line up by thick-film resistive element. 3) High reliability chip resistor employing metal glaze as resistive element 4) ROHM resistors have obtained ISO9001 / IATF1649 certification. 5) Corresponds to AEC-Q200. ●Products list Part No. Size Rated power (mm) (inch) (W) Rated ambient tem perature (°C) Rated term inal tem perature (°C) MCR10L 2012 0805 0.50 70 - MCR18L 3216 1206 0.75 70 - Res is tance tolerance (%) F ( ±1% ) J ( ±5% ) F ( ±1% ) J ( ±5% ) D ( ±0.5% ) MCR25L 3225 1210 1.
