MMST4401 - NPN Medium Power Transistor

Key Features

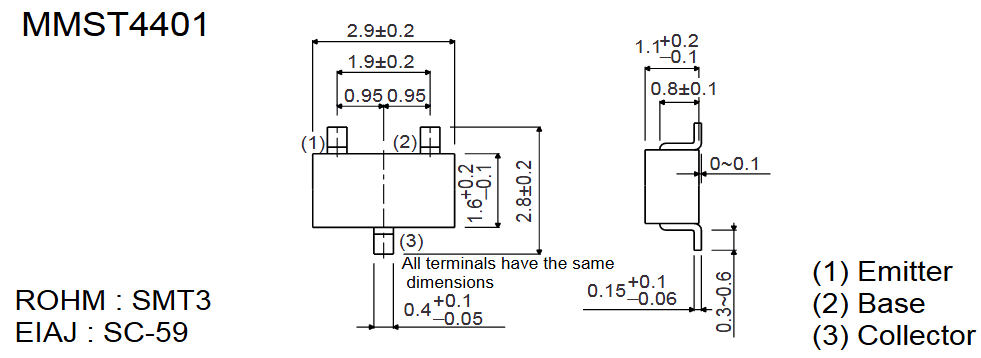

  • 1) BVCEO>40V (IC=1mA) 2) Complements the SST4403 / MMST4403. zDimensions (Unit : mm) SST4401 zPackage, marking, and packaging specifications Part No. Packaging type Marking Code Basic ordering unit (pieces) SST4401 SST3 R2X T116 3000 MMST4401 SMT3 R2X T146 3000 ROHM : SST3 (1) Emitter (2) Base (3) Collector MMST4401 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Symbol VCBO VCEO VEBO IC Limits 60 40 6 0.6.
