RGA80TSX2EHRC11 - 1200V 69A Field Stop Trench IGBT

Datasheet Summary

Features

1) Qualified to AEC-Q101 2) Short Circuit Withstand Time 10μs 3)Low Collector - Emitter Saturation Voltage 4) Built in Very Fast & Soft Recovery FRD 5) Pb - free Lead Plating ; RoHS Compliant l.

ROHM

📥 Download Datasheet

Datasheet Details

Part number	RGA80TSX2EHRC11
Manufacturer	ROHM
File Size	1.33 MB
Description	1200V 69A Field Stop Trench IGBT
Datasheet	RGA80TSX2EHRC11 Datasheet

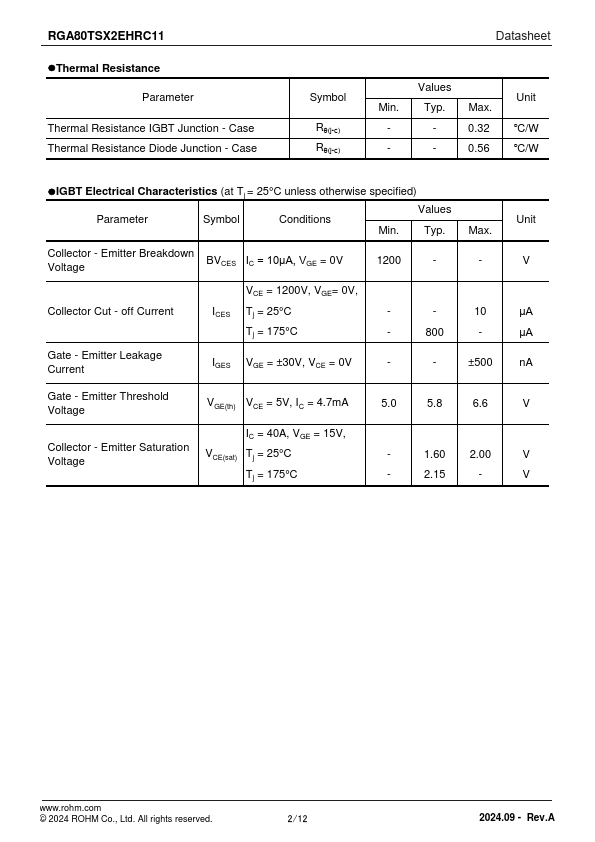

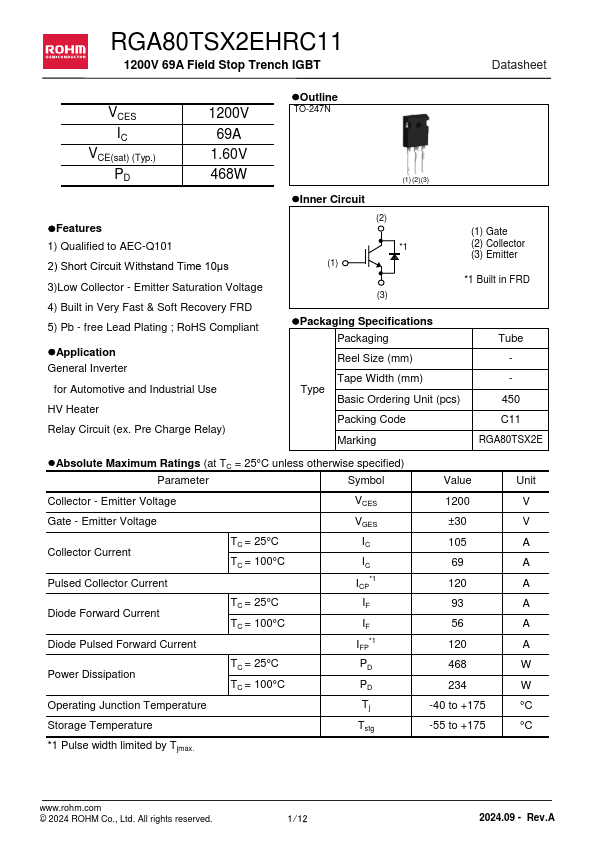

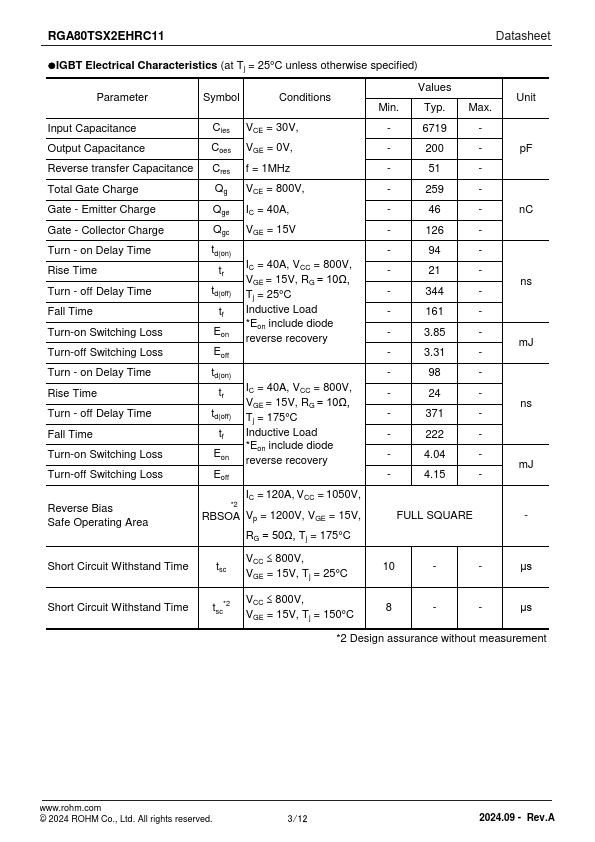

Additional preview pages of the RGA80TSX2EHRC11 datasheet.

📁 Similar Datasheet

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

RGA80TSX2EHRC11 1200V 69A Field Stop Trench IGBT Datasheet VCES IC VCE(sat) (Typ.) PD 1200V 69A 1.60V 468W lFeatures 1) Qualified to AEC-Q101 2) Short Circuit Withstand Time 10μs 3)Low Collector - Emitter Saturation Voltage 4) Built in Very Fast & Soft Recovery FRD 5) Pb - free Lead Plating ; RoHS Compliant lApplication General Inverter for Automotive and Industrial Use HV Heater Relay Circuit (ex.
