SCT3160KL - N-channel SiC power MOSFET

ROHM

Key Features

1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant l.

SCT3160KL n-channel sic power mosfet by ROHM - Datasheet Preview

Datasheet Details

Part number	SCT3160KL
Manufacturer	ROHM
File Size	1.17 MB
Description	N-channel SiC power MOSFET
Datasheet	SCT3160KL Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SCT316LD	300W Transient Voltage Supperssors Array	SeCoS
SCT316LD03C	300W Transient Voltage Supperssors Array	SeCoS
SCT316LD05C	300W Transient Voltage Supperssors Array	SeCoS
SCT316LD12C	300W Transient Voltage Supperssors Array	SeCoS
SCT316LD16C	300W Transient Voltage Supperssors Array	SeCoS

Other Datasheets by ROHM

Part Number	Description
SCT3160KLHR	Automotive Grade N-channel SiC power MOSFET
SCT3160KW7	N-channel SiC power MOSFET
SCT3105KL	N-channel SiC power MOSFET
SCT3105KR	N-channel SiC power MOSFET
SCT3120AL	N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

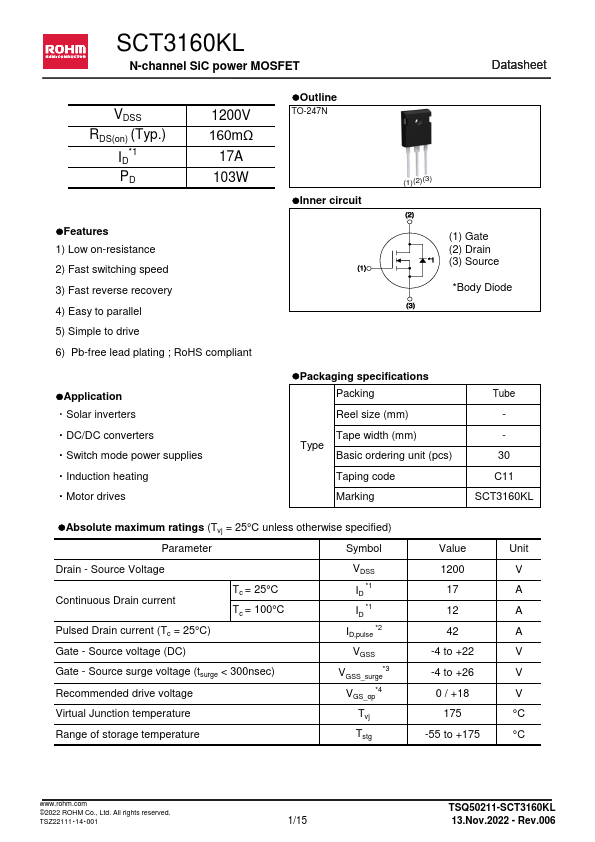

SCT3160KL N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 160mΩ 17A 103W lOutline TO-247N lInner circuit (1) (2) (3) lFeatures 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lApplication Solar inverters DC/DC converters Switch mode power supplies Induction heating Motor drives (1) Gate (2) Drain (3) Source *Body Diode Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
