SCT4026DWAHR - Automotive Grade N-channel SiC power MOSFET

Key Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lOutline TO-263-7LA (Tab) lInner circuit (1) (2)(3) (4) (5)(6) (7) (Tab) (1) Gate (2) Driver Source.
  • 1 (3)~(7) Pow er Source (1) (Tab) Drain (2).
  • 1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. 8) Wide creepage distance = m.

📥 Download Datasheet

Datasheet Details

Part number SCT4026DWAHR
Manufacturer ROHM
File Size 1.31 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT4026DWAHR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT-013-000 Transformer XiDi Technology
SCT-013-000V Split core current transformer YHDC
SCT-013-005 Transformer YHDC
SCT-013-010 Transformer YHDC
SCT-013-015 Transformer YHDC

Other Datasheets by ROHM

Part Number Description
SCT4026DW7 N-channel SiC power MOSFET
SCT4026DE N-channel SiC power MOSFET
SCT4026DR N-channel SiC power MOSFET
SCT4026DRHR Automotive Grade N-channel SiC power MOSFET
SCT4013DE N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

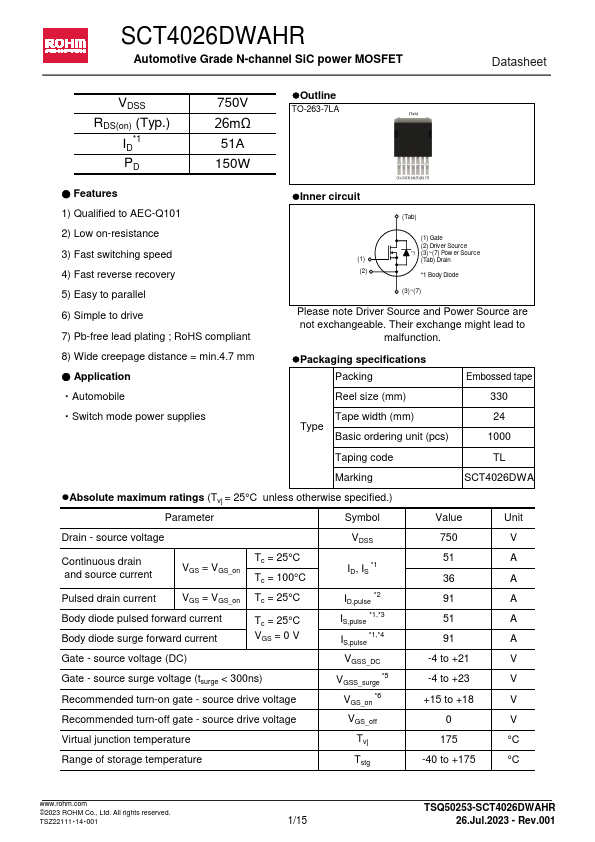

SCT4026DWAHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 750V 26mΩ 51A 150W ● Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lOutline TO-263-7LA (Tab) lInner circuit (1) (2)(3) (4) (5)(6) (7) (Tab) (1) Gate (2) Driver Source *1 (3)~(7) Pow er Source (1) (Tab) Drain (2) *1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. 8) Wide creepage distance = min.4.
