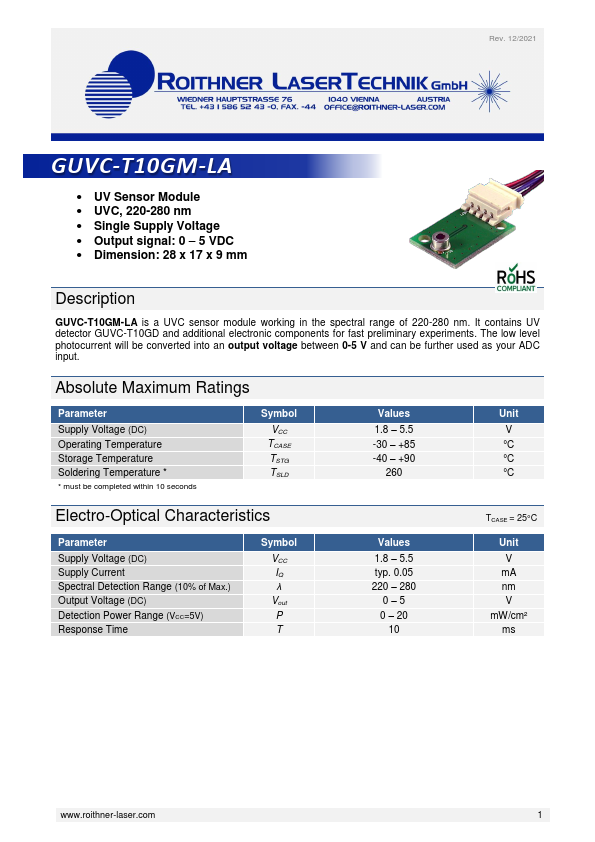

GUVC-T10GM-LA
GUVC-T10GM-LA is UV Sensor Module manufactured by ROITHNER.
Rev. 12/2021
- UV Sensor Module
- UVC, 220-280 nm
- Single Supply Voltage
- Output signal: 0
- 5 VDC
- Dimension: 28 x 17 x 9 mm
Description
GUVC-T10GM-LA is a UVC sensor module working in the spectral range of 220-280 nm. It contains UV detector GUVC-T10GD and additional electronic ponents for fast preliminary experiments. The low level photocurrent will be converted into an output voltage between 0-5 V and can be further used as your ADC...
