• Part: GVGR-T10GD
  • Manufacturer: ROITHNER
  • Size: 751.92 KB
Download GVGR-T10GD Datasheet PDF

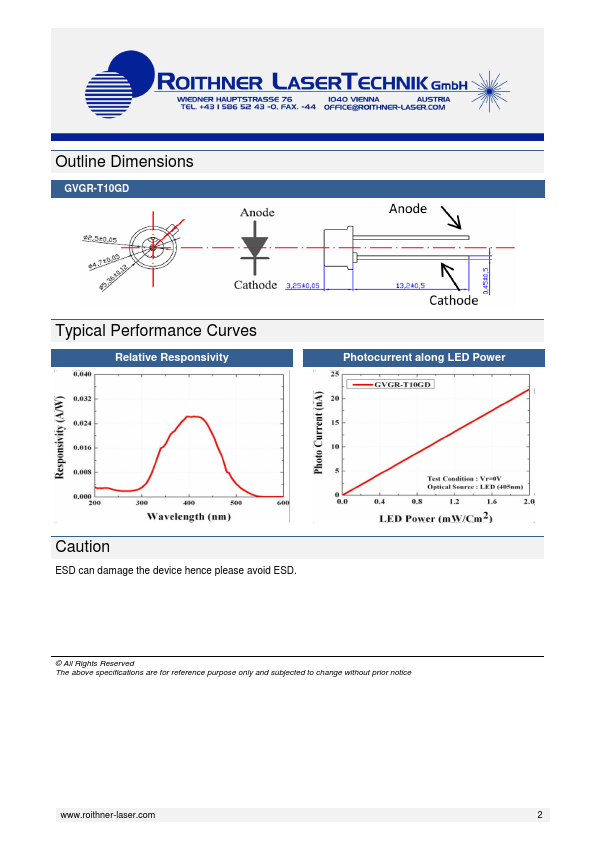

GVGR-T10GD page 2
Page 2

GVGR-T10GD Description

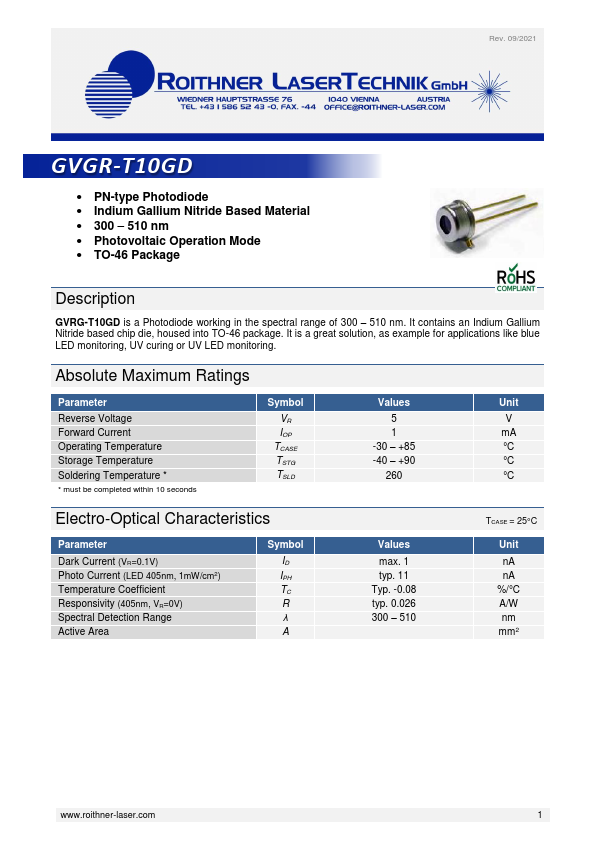

GVRG-T10GD is a Photodiode working in the spectral range of 300 510 nm. It contains an Indium Gallium Nitride based chip die, housed into TO-46 package. It is a great solution, as example for applications like blue LED monitoring, UV curing or UV LED monitoring.
