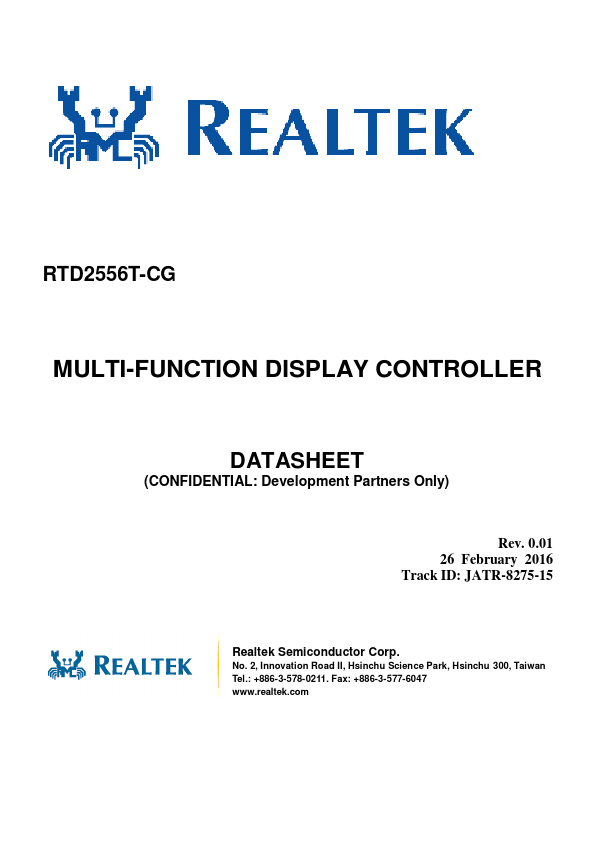

RTD2556T-CG
Overview
The Realtek RTD2556T-CG monitor controller combines an analog RGB input interface, HDMI 1.4 compliant digital input interfaces with HDCP1.4, DP1.2 digital input interfaces with HDCP1.4 and DVI digital input interfaces with HDCP1.4. The embedded MCU is based on an industrial standard 8051 core with external serial flash. $The RTD2556T-CG is suitable for multiple market segments and display applications, such as monitor, ᎴP۾OGݼJEдF3OFUB0JMOBUMMFZLGPS All in One PC, and embedded applications.
- RTD2556T-CG supports input format up to 1920x1200 @ 60Hz. $
- Support LVDS panel interfaces P
- Zoom scaling up and down O
- Embedded one MCU with SPI flash Ꮄ G 3 controller.
- It contains 4 ADCs in key pad application J F
- Require only one crystal to generate all ۾E B timing.
- Programmable internal low-voltage-reset F M (LVR) ݼO U
- High resolution 6 channels PWM output, and wide range selectable PWM frequency. U F Crystal д J L
- Support 14.318MHz crystal type B Analog RGB Input Interface
- 1 Analog input supported M
