APPLICATIONS

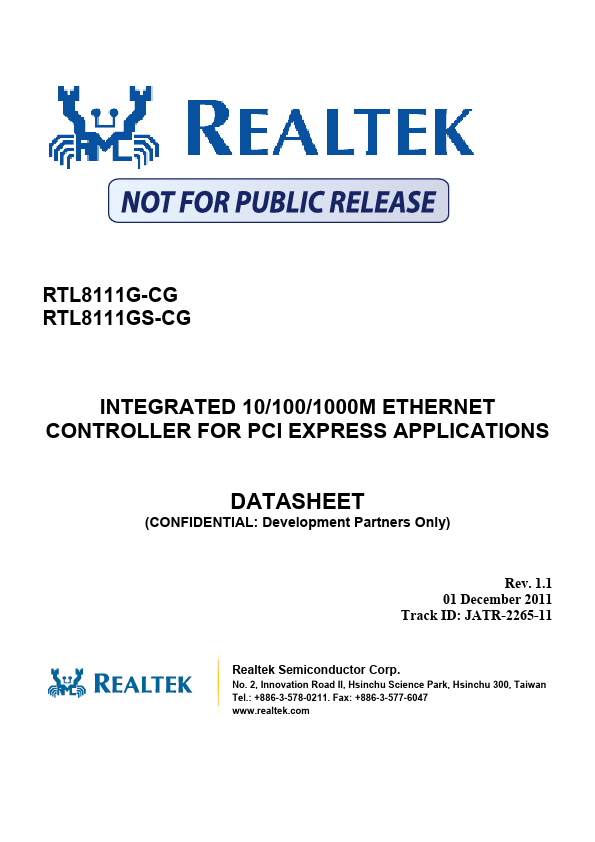

DATASHEET (CONFIDENTIAL: Development Partners Only) Rev. 1.1 01 December 2011 Track ID: JATR-2265-11 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 RTL8111G/RTL8111GS Datasheet 1. GENERAL DESCRIPTION
The Realtek RTL8111G-CG/RTL8111GS-CG 10/100/1000M Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds. The RTL8111G/RTL8111GS features embedded One-Time-Programmable (OTP) memory. The RTL8111G/RTL8111GS provides a built in switching regulator (RTL8111GS) or LDO regulator (RTL8111G).
