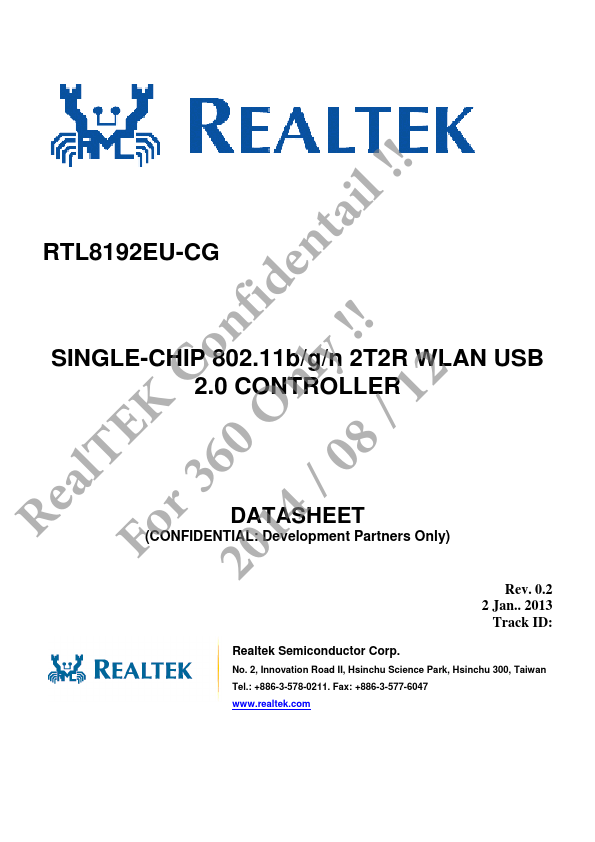

RTL8192EU Datasheet PDF

Realtek RTL8192EU

RTL8192EU is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN (WLAN) solution for the wireless high throughput 802.11n specification. It combines a MAC, a 2T2R capable baseband, and RF in a single chip. The RTL8192EU provides a complete solution for a high throughput performance wireless Lan controller il !!

Part No.	RTL8192EU
Datasheet	RTL8192EU Download
Manufacturer	Realtek
Description	SINGLE-CHIP 802.11b/g/n 2T2R WLAN USB-2.0 CONTROLLER
Buy	Stock & Price

GENERAL DESCRIPTION

The Realtek The RTL8192EU baseband implements Multiple Input, Multiple Output (MIMO) Orthogonal Frequency ta Division Multiplexing (OFDM) with 2 transmit and 2 receive paths (2T2R) and is compatible with the 802.11n specification.

FEATURES

include two spatial streams transmission, short Guard Interval (GI) of 400ns, spatial spreading, and transmission over 20MHz and 40MHz bandwidth. The RTL8192EU provides n a spatial stream Space-Time Block Code (STBC), Transmit Beamforming (TxBF) and Low Density Parity e Check (LDPC) encoding and decoding to extend the range of transmission. At the receiver, extended range fid and good minimum sensitivity is achieved by having receiver diversity up to two antennas. As the recipient, the RTL8192EU also supports explicit sounding packet feedback that helps senders with beamforming capability. With two independent RF blocks, the RTL8192EU can perform fast roaming without link n !! interruption. Co ly 2 For legacy compatibility, Direct...
